WM 468320 Removing And Installing Brake Shoes (All Models): Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

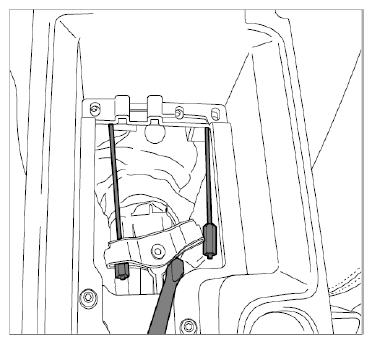

Disengage the parking-brake cable at the parking-brake lever.

Fig 1: Removing Parking-Brake Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

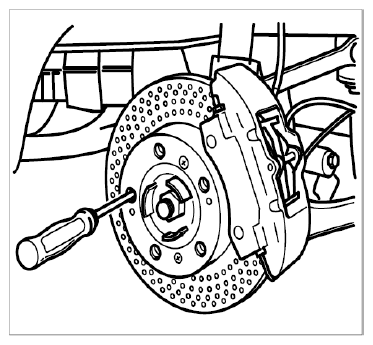

Using a screwdriver, turn the adjustment device fully towards "release" through a wheel bolt threaded hole.

Fig 2: Removing Parking-Brake Shoes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take off the brake disc after removing the countersunk screws (brake calliper removed). If a firmly seated brake disc cannot be removed by gentle tapping with a plastic hammer (only permitted for grey cast iron brake discs), evenly screw hexagon-head bolts into the two M8 threads of the brake disc, thereby pressing off the disc.
Remove compression springs -10- , adjustment device -2- and return spring -4- . Remove parking-brake shoes and return spring -5- .

Fig 3: Exploded View Of Parking-Brake Shoes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
