Removing Brake Pedal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

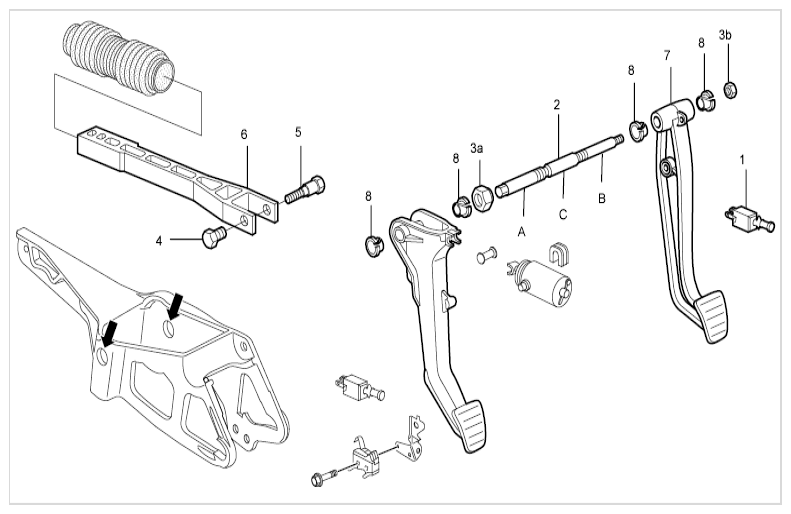

Fig 1: Exploded View Of Brake Pedal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove brake light switch.
Release brake light switch -1- by turning it 90° and pull it out of the installation opening.
Disconnect brake pushrod from brake pedal.
Remove bolt and threaded bushing, see -Inset- .

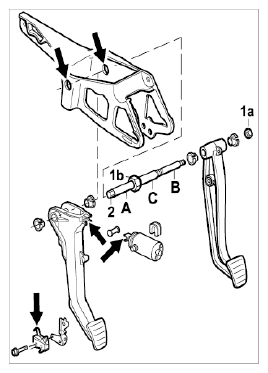

Fig 2: Identifying Brake Pushrod Bolt And Threaded Bushing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove pedal axle.
Screw out and remove lock nut -1b- and nut -1a- as well as pedal axle -2- .

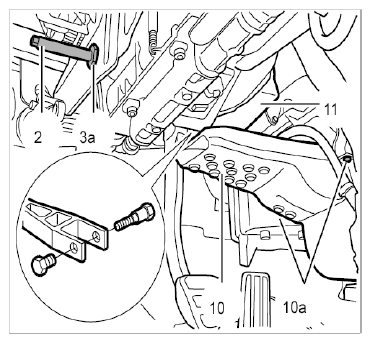

Fig 3: Locating Pedal Axle Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out brake pedal.
Turn the brake pedal and brake pushrod as required, see -Inset- .

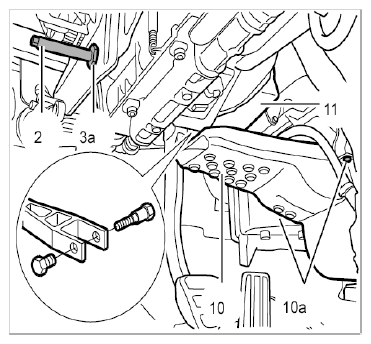

Fig 4: Identifying Brake Pushrod Bolt And Threaded Bushing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
