Installing Tail Light

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Push on the plate for the bulbs on the rear light until the plate clicks into place.
Check the seal for the rear light and if in doubt, replace.

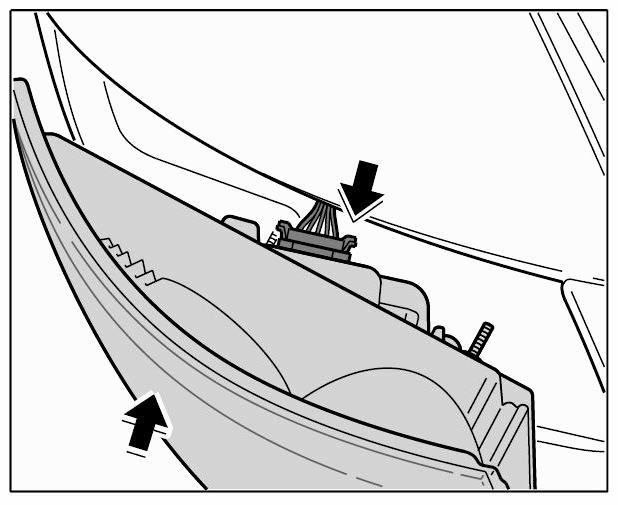

Push the central connector for the tail light together until the connector is felt to engage.

Fig 1: Pushing Central Connector For Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the electric lead into the rear wing and insert the tail light into the mounting.

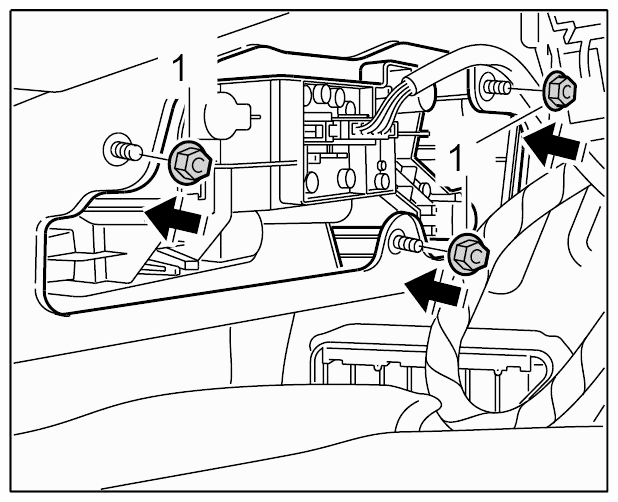

Screw down the rear light with the three fastening nuts -1- . → Tightening torque: 2 ftlb.

Fig 2: Screwing Down Rear Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
