Removing Upper Part Of Rear Spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

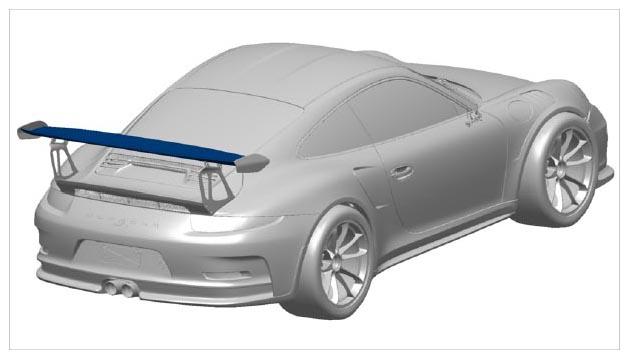

Fig 1: Identifying Rear Spoiler Installation Position (Upper Part)
G09995067Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove upper part of rear spoiler.
    1. 1.1. Unscrew fastening screws.
    2. 1.2. Remove upper part of rear spoiler.

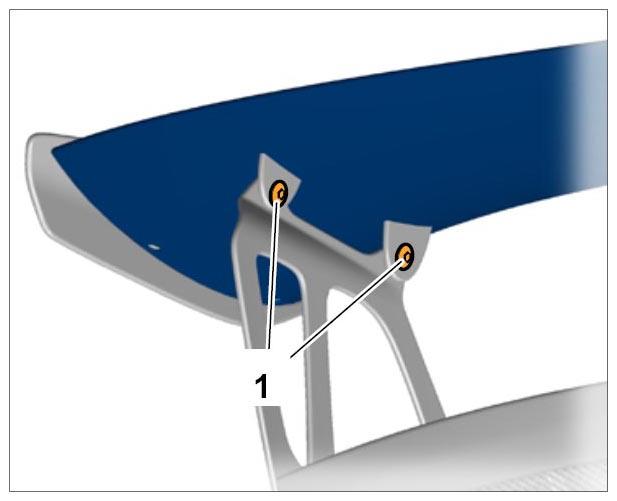

      Fig 2: Identifying Upper Part Of Rear Spoiler Fastening Screws
      G09995068Courtesy of PORSCHE CARS NORTH AMERICA, INC.
