Removing ATF Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Even after you have drained the hydraulic oil, there will still be residual oil in the ATF pan.

Loosen all screws on the ATF pan except for screws -items 1 and 3- in reverse tightening sequence and then unscrew them.

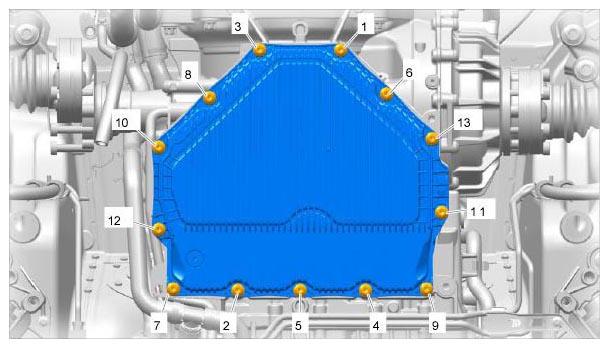

Fig 1: ATF Pan Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully lever off the ATF pan on the opposite side to screws -1 and 3- and catch any oil that overflows.
Unscrew screws -1 and 3- and carefully remove the ATF pan.
Repalce ATF pan.

Replace all aluminum screws and the drain plug.
