Preliminary Work For ATF Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Caustic fluids

Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Remove cover for rear underbody.
→ 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY .
Drain ATF.
→ 370255 CHANGING ATF .

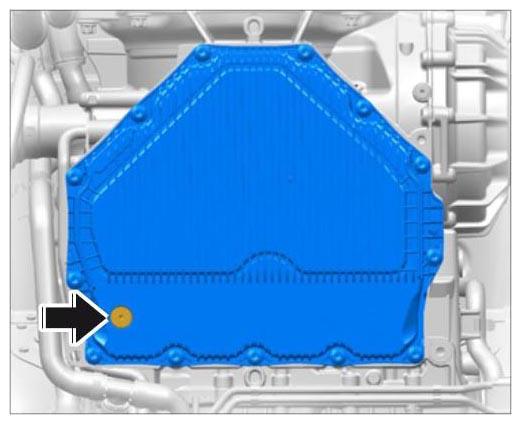

Fig 1: Locating ATF Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
