Installing Tailpipe Cover: Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Grease sliding bases and silencer supports lightly with Optimoly high-temperature grease (Part No. 000.043.004.00).
Slide tailpipe cover with clamp onto the tailpipe.
Information

Observe specified dimensions for installation position with respect to rear apron.

Information

If the engine mountings (hydraulic mounts) are to be replaced, the gap dimension to be set with respect to the upper rear apron is reduced by 1.5 mm because of the settling behavior of the mountings
Align tailpipe cover with respect to rear apron.
1. 3.1. Carrera S tailpipe cover

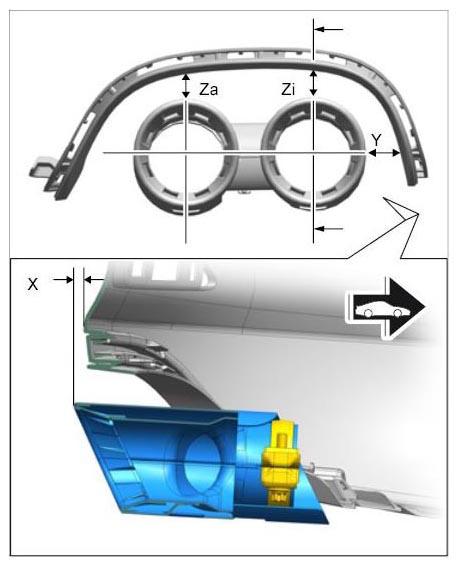

  Fig 1: Identifying Carrera S Tailpipe Cover Gap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Za - Gap with respect to top of rear apron: Outer cover → Nominal value: 23 mm+/-2 mm
  2. Zi - Gap with respect to top of rear apron: Inner cover → Nominal value: 24 mm+/-2 mm
  3. Y - Gap with respect to inside of rear apron: → Nominal value: 30 mm+/-2 mm
  4. X - Projection with respect to rear apron inner lining: → Nominal value: 9 mm+/-2 mm
2. 3.2. Sports exhaust system tailpipe cover: Adjustment dimensions as for standard exhaust system

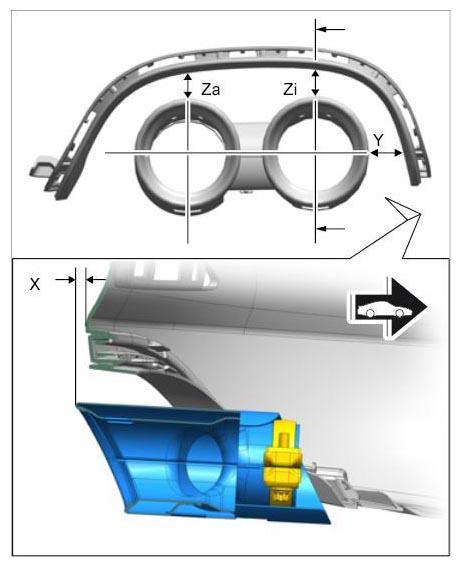

  Fig 2: Identifying Sports Exhaust System Tailpipe Cover Adjustment Dimensions
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure ball clamp for tailpipe cover.
Tailpipe cover must be fitted so that it does not hit against the free-standing exhaust pipe!

→ Tightening torque: 30 Nm (22 ftlb.)

Grease sliding bases and silencer supports lightly with Optimoly high-temperature grease (Part No. 000.043.004.00).
Install tailpipe cover.

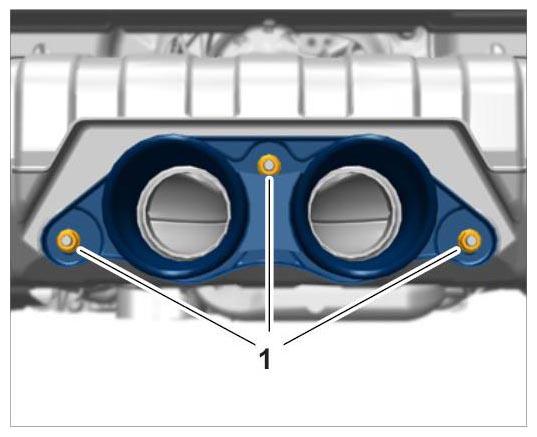

1. 2.1. Fit tailpipe cover and fastening nut -1- .
2. 2.2. Adjust sliding bases and align tailpipe cover with respect to the rear apron.
3. 2.3. Tighten fastening nuts -1- .
