Removing Front Direction Indicator Light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

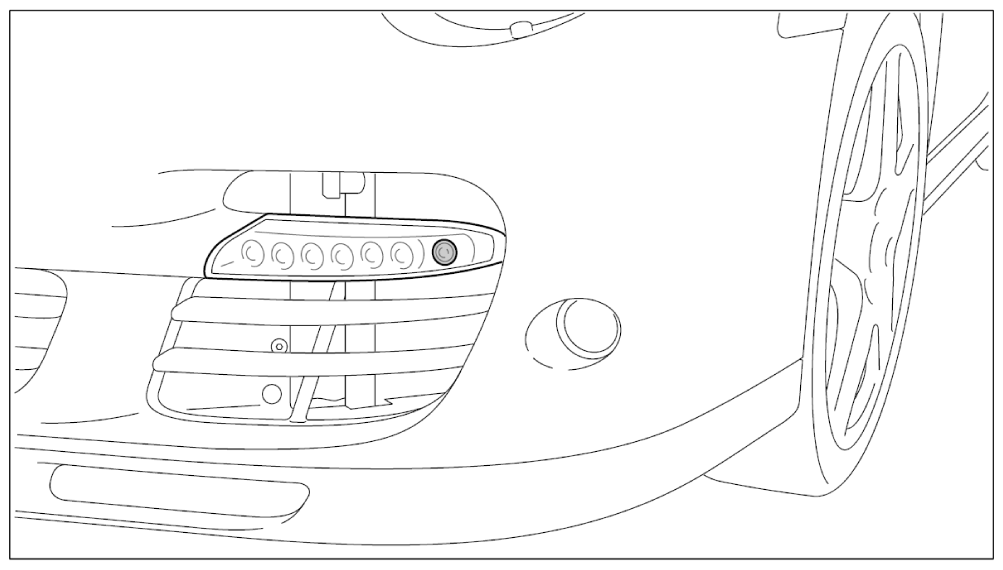

Fig 1: Identifying Position Of Indicator Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The direction indicator light can only be completely removed when the front apron is removed.

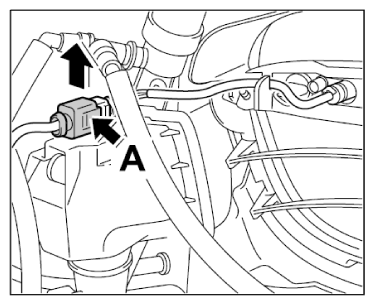

Disengage electric plug connection above the fog light, release plug connection -A- and disconnect it.

Fig 2: Unplugging Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

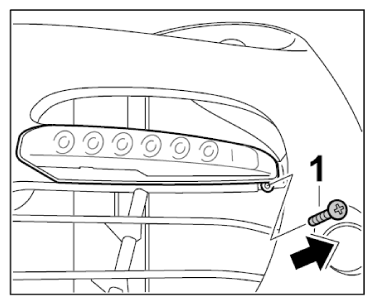

Unscrew the fastening screw -1- for the front direction indicator light.

Fig 3: Removing Fastening Screw From Direction Indicator Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

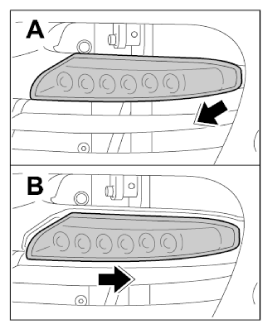

Pull the outside of the direction indicator light forward -A- and then towards the outside -B- of the front apron.

Fig 4: Removing Direction Indicator Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove direction indicator light and wire harness from the front apron.
