Completing (Disassembling And Assembling) Wheel Bearing Housing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble old wheel bearing housing and fit reusable parts to the new wheel bearing housing (speed sensor, brake cover plate, lid for wheel bearing -3- , fastening screws -2- , wheel hub -1- and the tension bolt for RWD vehicles).
The wheel bearing -4- must be replaced.

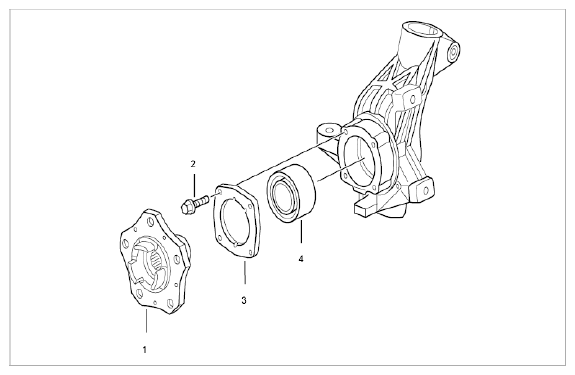

Fig 1: Identifying Wheel Bearing Housing Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Take off brake cover plate on the wheel bearing housing. Press wheel hub -1- out of the wheel bearing housing (wheel bearing) → 405719 REMOVING AND INSTALLING FRONT WHEEL BEARING .
2. 1.2. Remove lid -3- for wheel bearing on the wheel bearing housing (4 screws).
3. 1.3. Press new wheel bearing -4- into the new (heated) wheel bearing housing and complete the wheel bearing housing → Installing Front Wheel Bearing .
