Removing and installing the hazard warning light switch: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch on the hazard warning light switch (button comes out).
  2. On the sides of the button, there are small openings that project beyond the dashboard insert. Insert two small screwdrivers into the openings and pull off the button (A) towards the front.

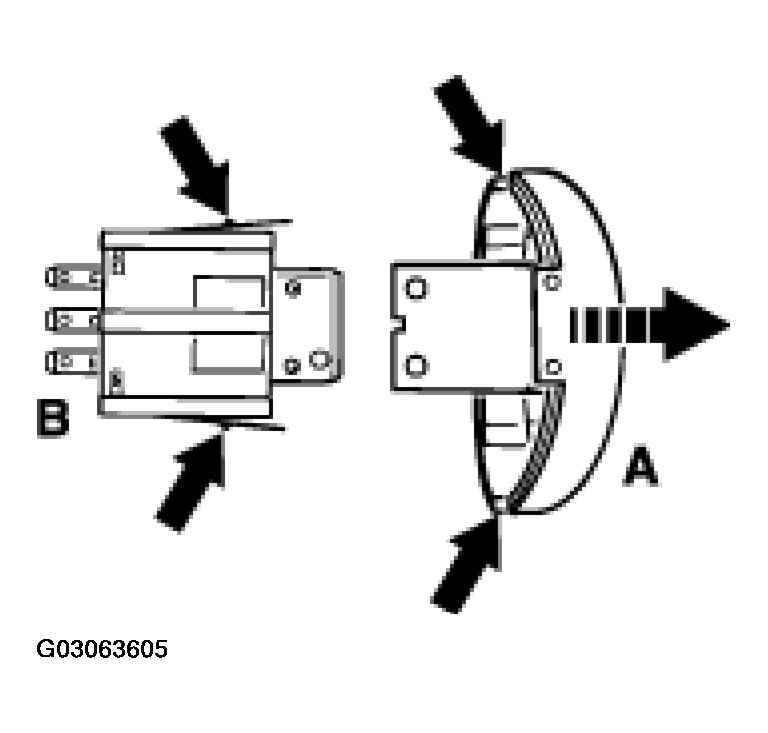

    Fig 1: Pulling Off Hazard Warning Light Switch Button Towards Front
    G03063605Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unclip the collar from the dashboard insert. The hazard warning light switch (B) is held in the dashboard insert by two locking hooks. See Fig 1 . Press the right locking hook towards the switch, grip the button holder with a pair of pliers and pull out the switch towards the front.
