Removing and installing servo motor for automatic headlight beam adjustment: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off the light. Release the headlight housing and pull out forwards slightly.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment and remove the headlight housing.
  3. Release and open the cover with control module. Disconnect the electrical plug connection from the servo motor and undo the two fastening screws.
  4. Remove the ignition unit (two fastening screws).

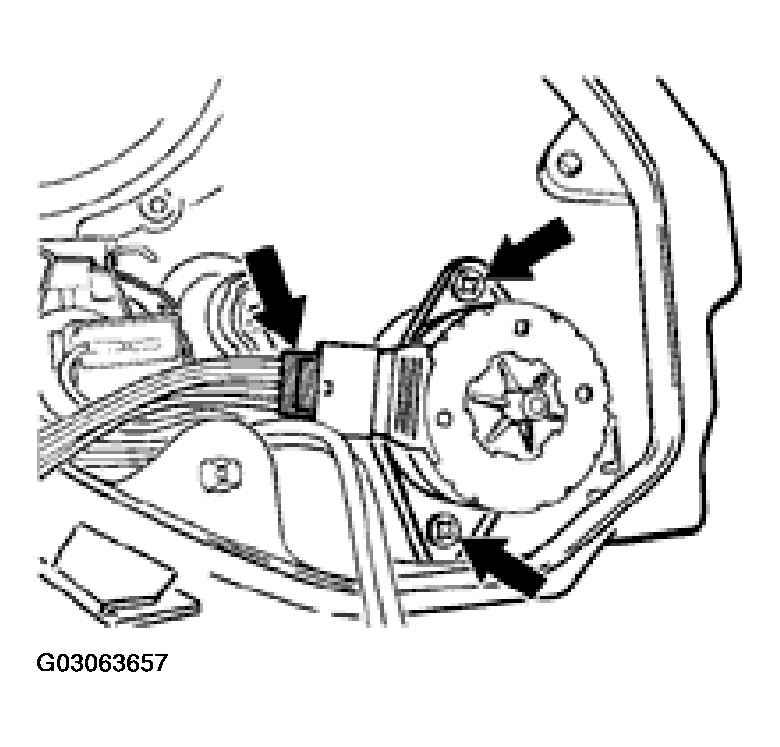

    5. Fig 1: Removing Screws And Ignition Unit
    G03063657Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Press the release lever down with a screwdriver and pull out the servo motor towards the rear.

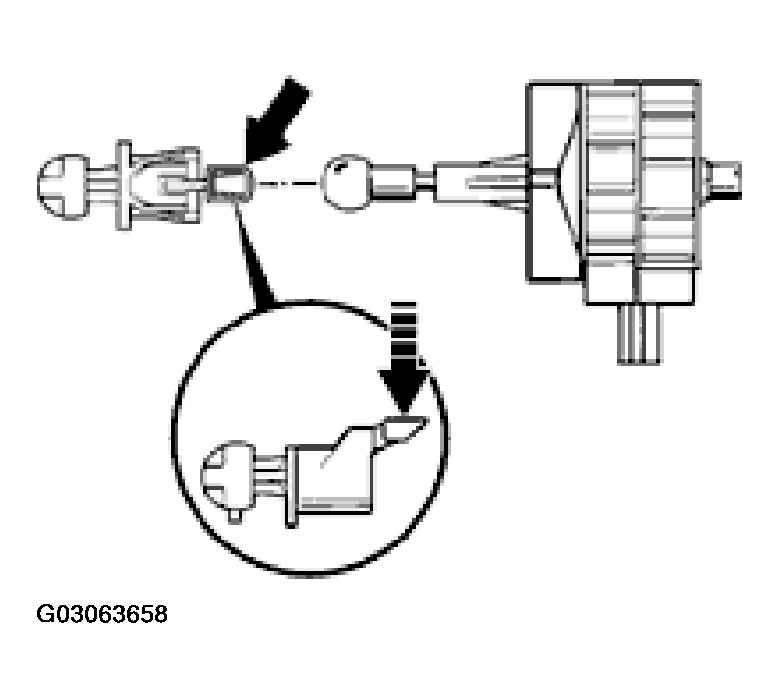

    Fig 2: Pressing Release Lever Down & Removing Servo Motor For Automatic Headlight Beam Adjustment
    G03063658Courtesy of PORSCHE OF NORTH AMERICA, INC.
