Removing and installing ignition unit for gas discharge lamp: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off the light. Release the headlight housing and pull out forwards slightly.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment and remove the headlight housing.
  3. Release and open the cover with control module. Unscrew the electrical plug connection on the gas discharge lamp (bayonet lock).
  4. Undo the two fastening screws on the ignition unit and remove the ignition unit. Pull off electrical plug connection.

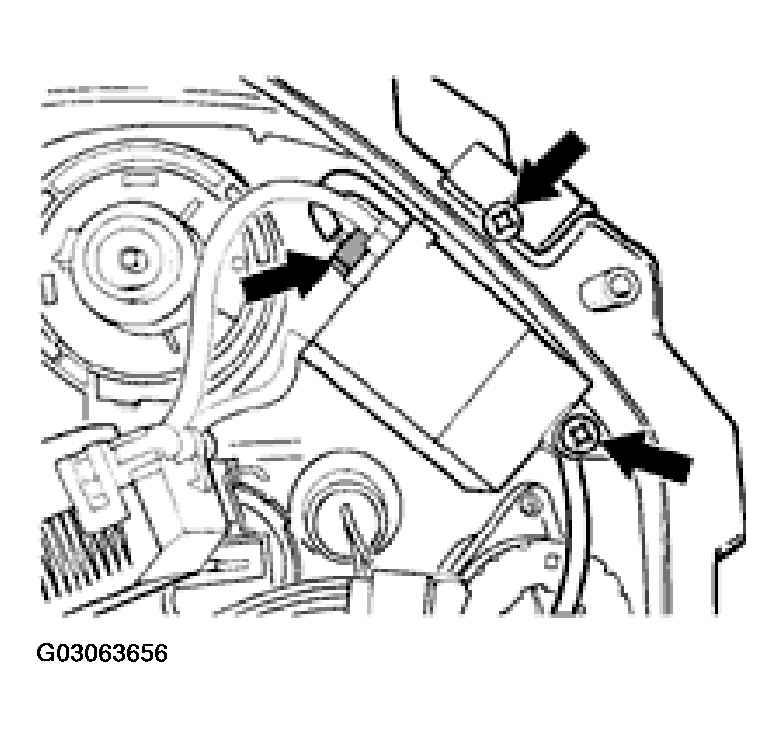

    Fig 1: Undoing Fastening Screws & Removing Ignition Unit For Gas Discharge Lamp
    G03063656Courtesy of PORSCHE OF NORTH AMERICA, INC.
