Removing and installing drive motor for headlight beam adjustment: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlight and open the rear cover. Disconnect the electrical plug connection on the drive motor.
  2. Undo the fastening screw and remove the drive motor by turning counter-clockwise (bayonet lock).

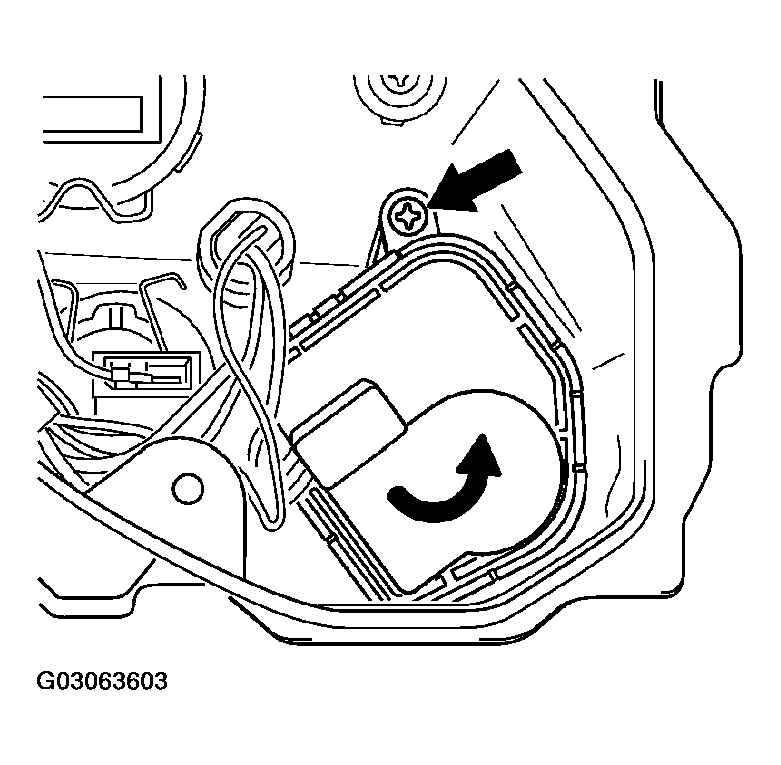

    Fig 1: Undoing Fastening Screw & Removing Drive Motor For Headlight Beam Adjustment
    G03063603Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Swivel the drive motor up, press down the locking tab (arrow) with a small screwdriver and carefully pull out the drive motor (plastic housing).

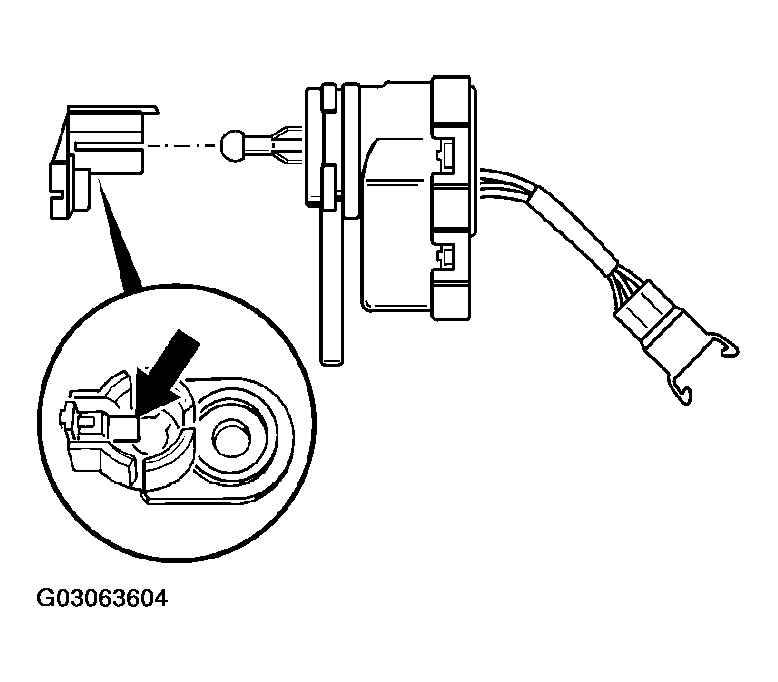

    Fig 2: Removing Drive Motor For Headlight Beam Adjustment Plastic Housing
    G03063604Courtesy of PORSCHE OF NORTH AMERICA, INC.
