Removing and installing control module for gas discharge lamp: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off the light. Release the headlight housing and pull out forwards slightly.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment and remove the headlight housing.
  3. Release and open the cover with control module. Disconnect the electrical plug connection from the control module and undo the three fastening screws.

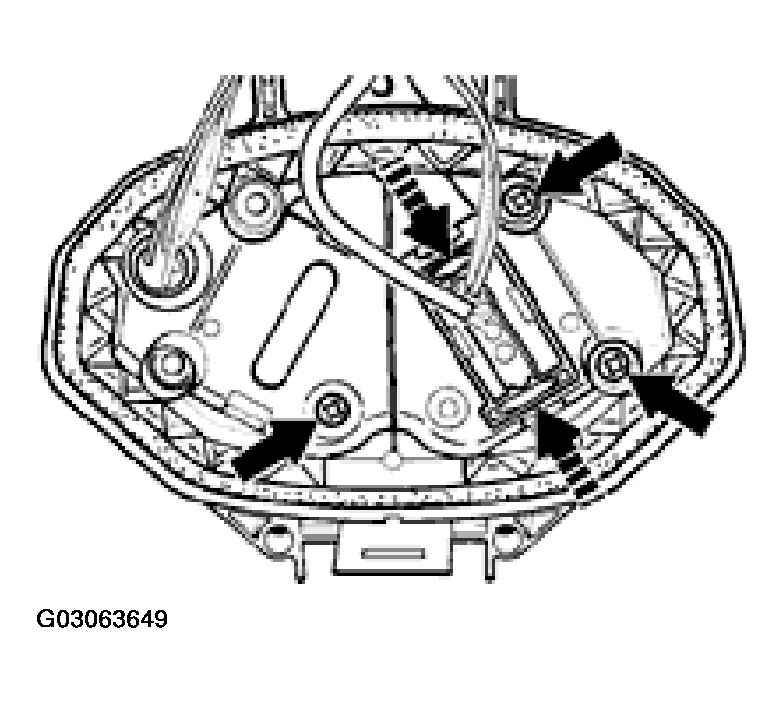

    Fig 1: Removing Control Module For Gas Discharge Lamp & Undoing Fastening Screws
    G03063649Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Remove the control module from the cover.
