Removing control module for gas discharge lamp

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off light.
  2. Remove main headlight. See REMOVING MAIN HEADLIGHT  .
  3. Unscrew fastening screws -arrow-  from the control module holder and remove holder.

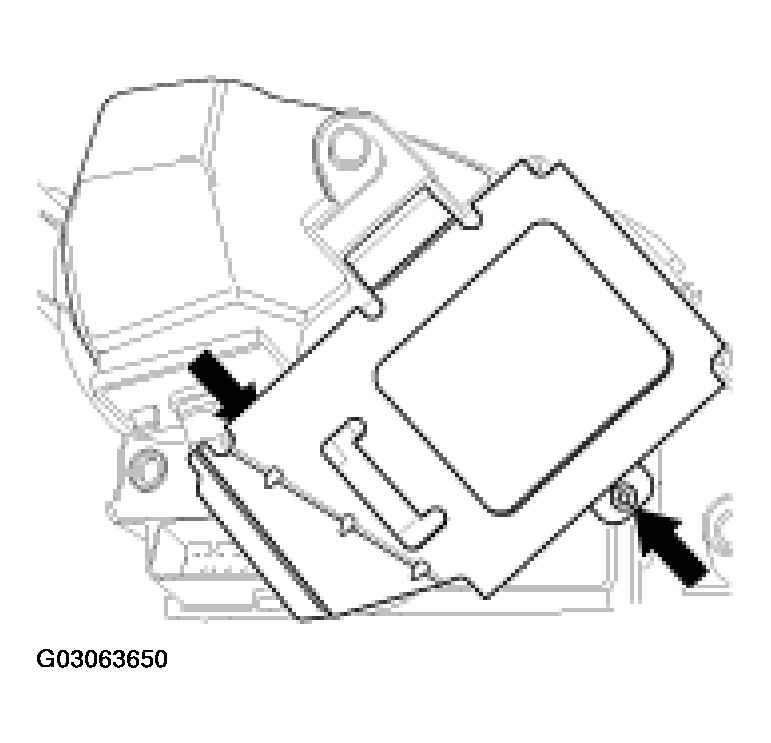

    4. Fig 1: Removing Control Module Holder & Screws (From MY '02)
    G03063650Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Raise the catch of the electrical plug connection (grey plug) with a screwdriver and disconnect.
  5. Unscrew both fastening screws -A-  , press both locking tabs -B-  and remove the rear cap -1-  .

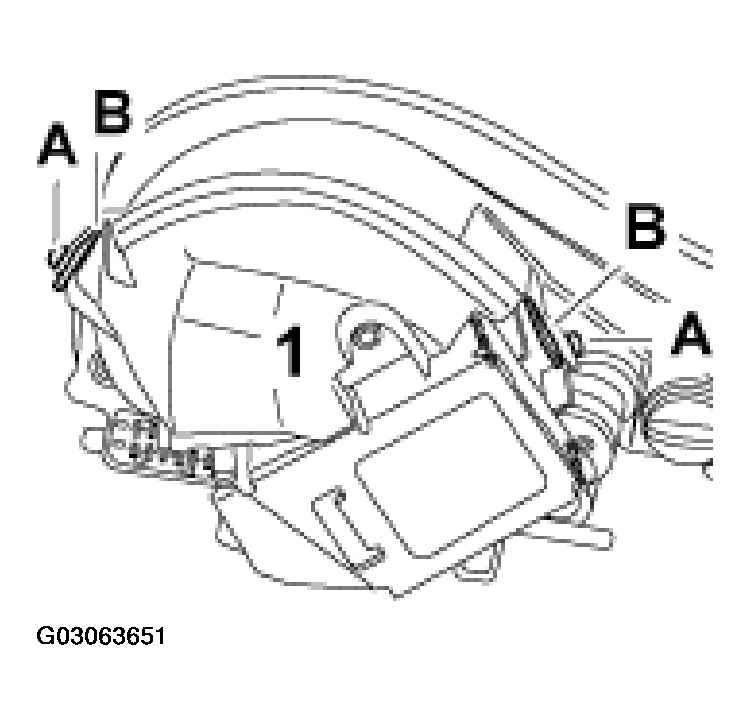

    Fig 2: Unscrewing Fastening Screws, Pressing Locking Tabs & Removing Rear Cap (From MY '02)
    G03063651Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Unscrew electrical plug connection -B-  on the gas discharge lamp (bayonet lock).

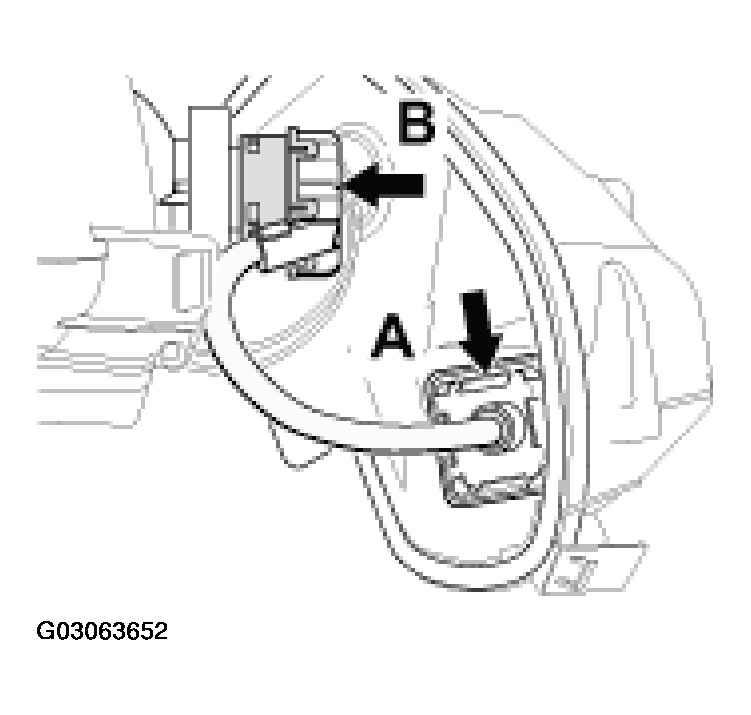

    Fig 3: Unscrewing Electrical Plug Connection On Gas Discharge Lamp (From MY '02)
    G03063652Courtesy of PORSCHE OF NORTH AMERICA, INC.
  7. Unclip the wiring arrangement -A-  from the closure cap and remove the control module with the closure cap wire. See Fig 3 .
