Removing and installing bulb for tail light: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open engine compartment lid. Unscrew M6 x 15 fastening screw and pull out the tail light to the rear.

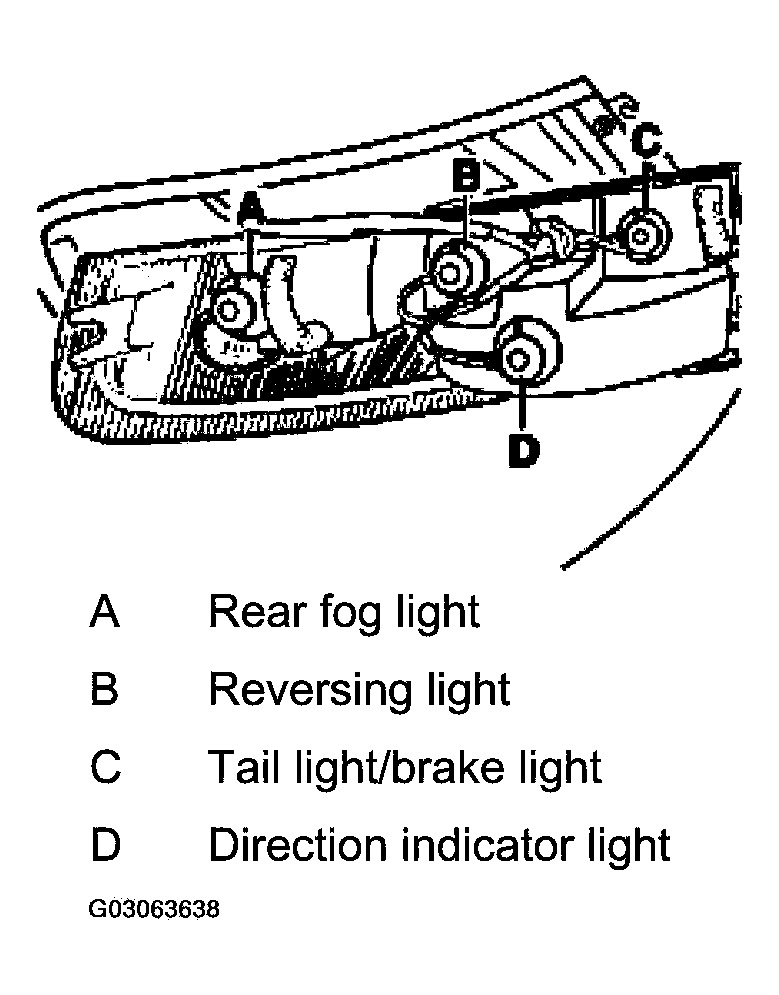

    Fig 1: Removing Tail Light Bulb
    G03063638Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Turn bulb socket counter-clockwise and remove from the tail light.
  3. Take defective bulb out of the bulb socket (bayonet lock).
