Installing tail light holder

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: An assembly aid is moulded on the tail light holder. This assembly aid is broken off after the holder is adjusted and fastened.

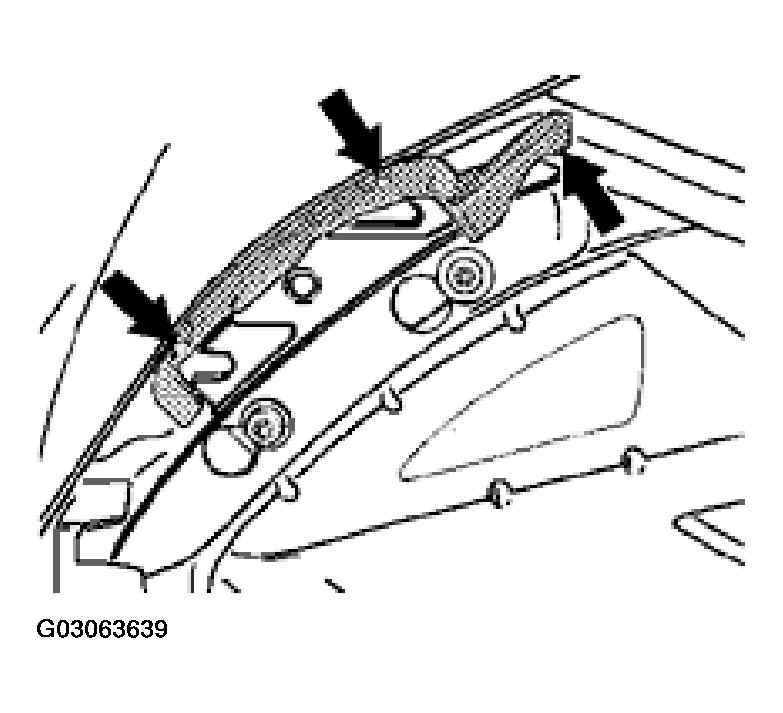

  1. Install holder and close the engine compartment lid. The assembly aid must touch the body and the engine compartment lid (see arrows).
    Fig 1: Installing Tail Light Holder
    G03063639Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Fasten the holder and break off the assembly aid.
  3. Install the tail light and check the gap dimension (3 mm) using a star gauge. If necessary, remove the tail light again and carry out fine adjustment on the holder. Gap dimension and star gauge: see DIAGRAM - BODY GAP DIMENSIONS .
