Removing and installing bulb for parking light: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and install main headlight (Refer to Removing and installing main headlights  ).
  2. Open rear cover and pull the parking light bulb socket (arrow) out of the headlight reflector (do not pull on the wires).

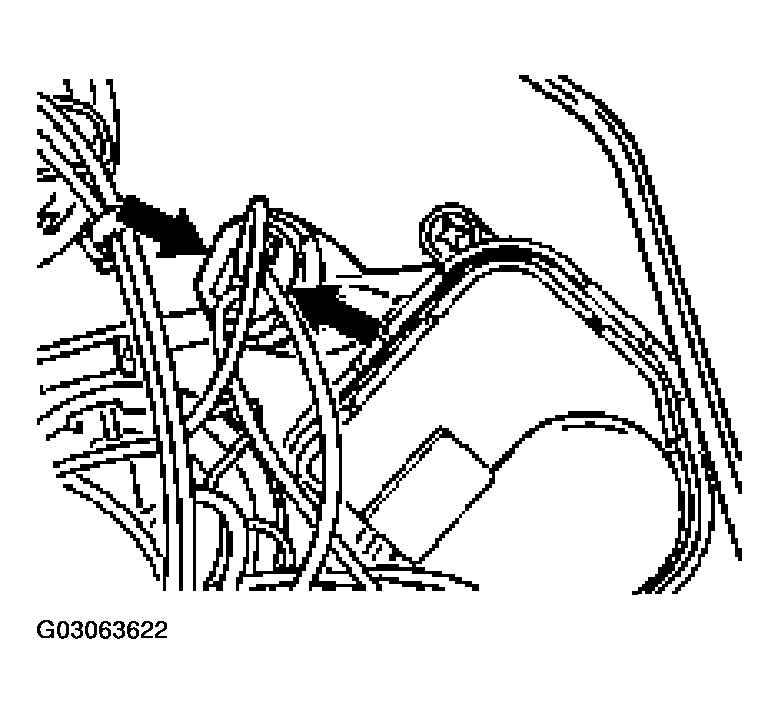

    Fig 1: Removing Parking Light Bulb Socket
    G03063622Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Remove defective bulb from the parking light bulb socket.
