Removing and installing bulb for fog light: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and install main headlight (Refer to REMOVING AND INSTALLING MAIN HEADLIGHTS  ).
  2. Rotate the round cover in the headlight housing clockwise and remove.
  3. Disconnect electrical connection of defective bulb (do not pull on the wires).
  4. Press down retaining bracket (arrow) and swivel downwards. Remove defective bulb.

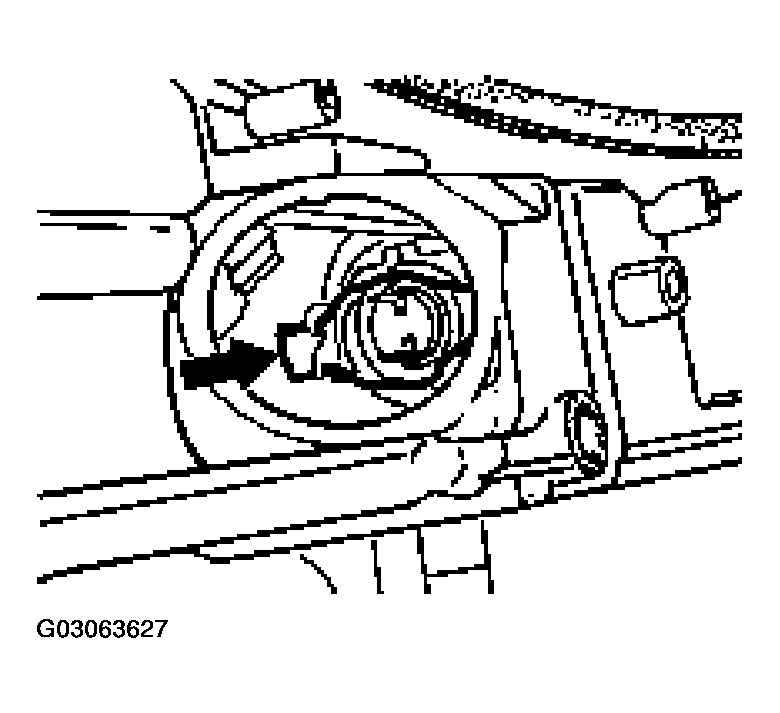

    Fig 1: Pressing Down Retaining Bracket And Remove Fog Light Bulb
    G03063627Courtesy of PORSCHE OF NORTH AMERICA, INC.
