Removing bulb for fog light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off light. Remove main headlight. See REMOVING MAIN HEADLIGHT  .
  2. Rotate the closure cap in the headlight housing counter-clockwise and remove.

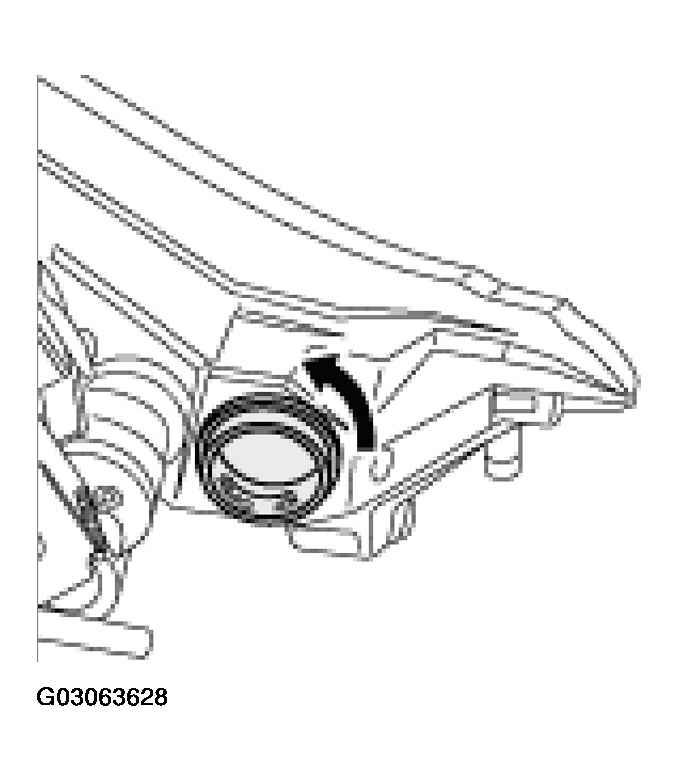

    Fig 1: Removing Headlight Housing Closure Cap (From MY '02)
    G03063628Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Press down retaining bracket -arrow-  with a screwdriver and swivel it to the left -arrow-  .

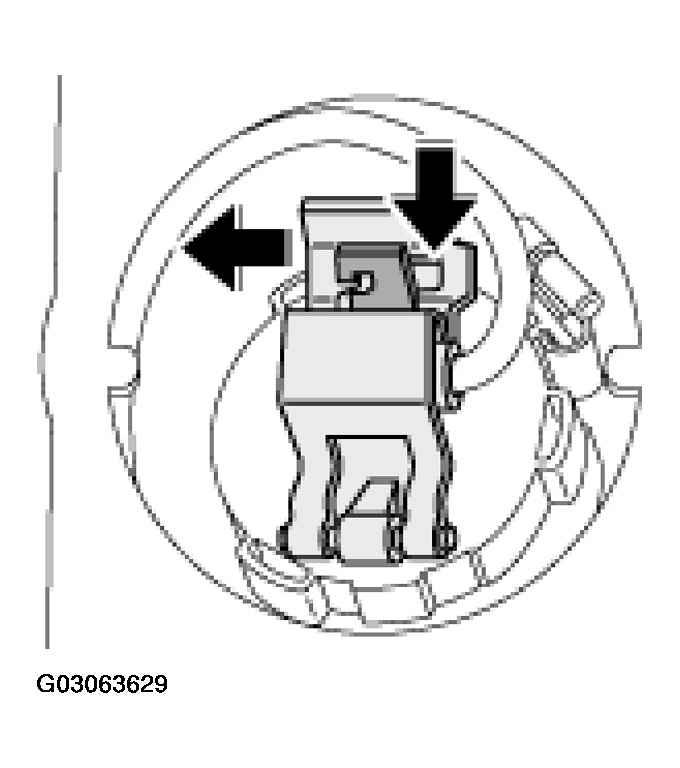

    Fig 2: Removing Retaining Bracket (From MY '02)
    G03063629Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull bulb with cable out of the headlight housing.
  5. Disconnect electrical plug connection -arrow-  from the defective bulb.

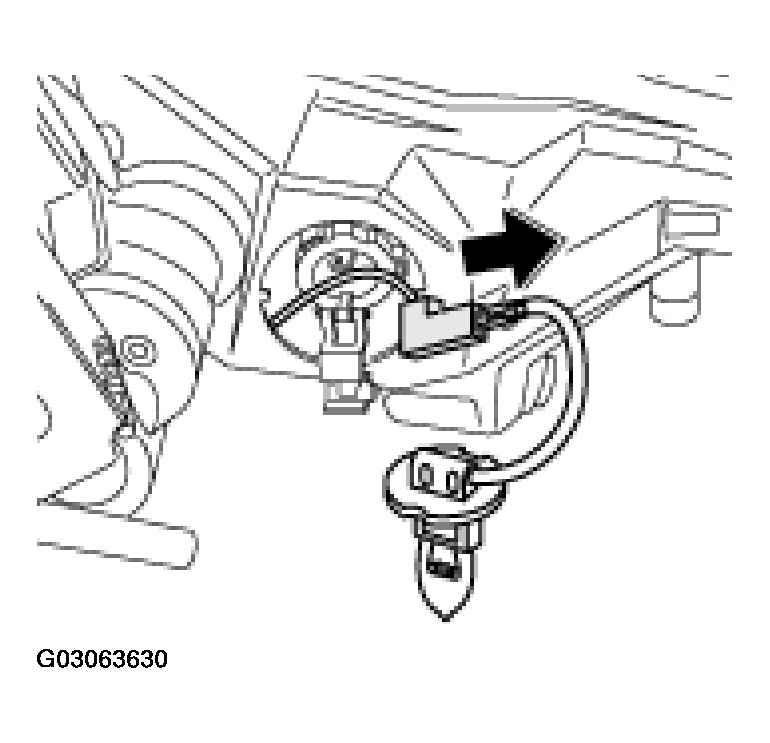

    6. Fig 3: Disconnecting Fog Light Electrical Plug Connection (From MY '02)
    G03063630Courtesy of PORSCHE OF NORTH AMERICA, INC.
