Removing and installing bulb for direction indicator light: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and install main headlight (Refer to REMOVING AND INSTALLING MAIN HEADLIGHTS  ).
  2. Turn bulb socket counter-clockwise and remove from the headlight housing.

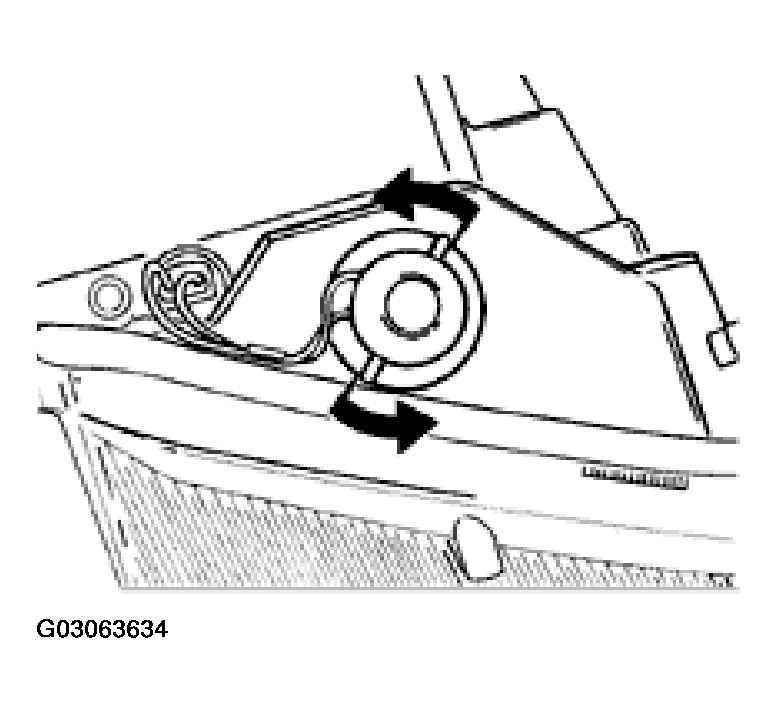

    Fig 1: Removing Direction Indicator Light Bulb Socket
    G03063634Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Take defective bulb out of the bulb socket (bayonet lock).
