Removing bulb for auxiliary headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The bulb for auxiliary headlights (high beam headlight/headlight flasher) is located beneath the lamp for dipped beam/high beam headlight.
  1. Switch off light. Remove main headlight. See REMOVING MAIN HEADLIGHT  .
  2. Unscrew fastening screws -A-  , press both releases -B-  and remove the rear cap -1-  .

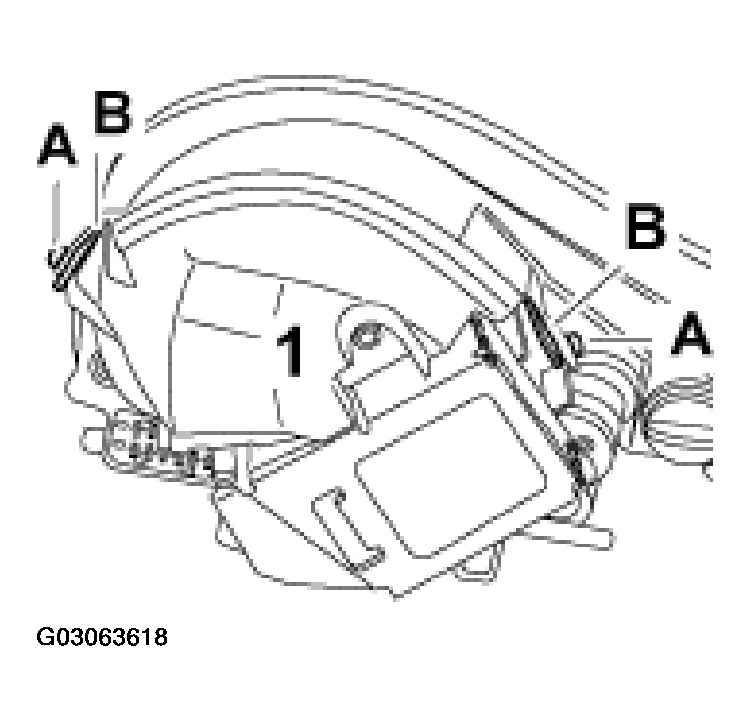

    Fig 1: Unscrewing Fastening Screws, Pressing Releases & Removing Rear Cap
    G03063618Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Turn the bulb holder -arrow-  . Turn counter-clockwise on the left headlight and clockwise on the right headlight. Take the bulb holder out of the headlight housing.

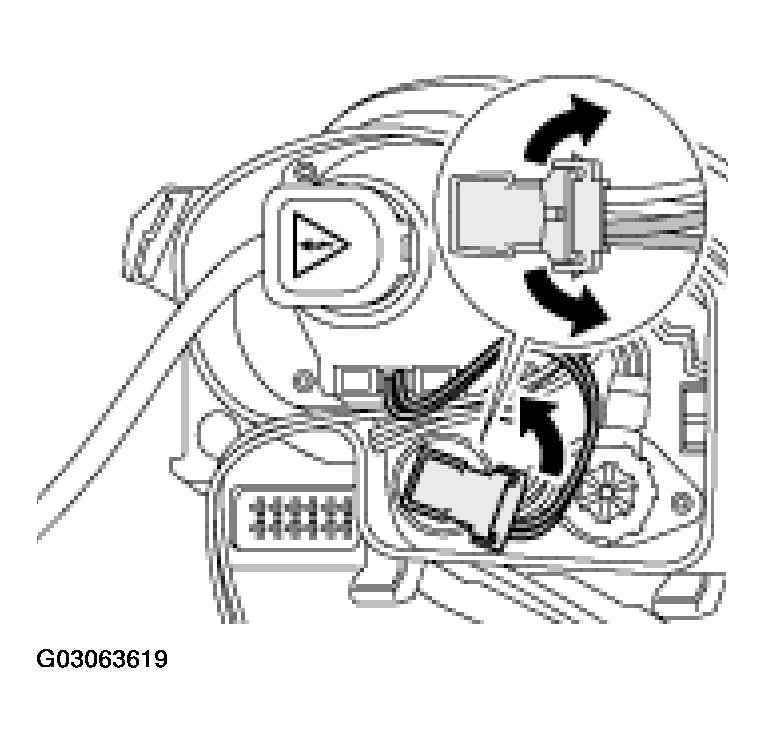

    Fig 2: Removing Bulb Holder Out Of Headlight Housing
    G03063619Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull both releases of the plug -arrows-  apart. See Fig 2 . Pull plug out of the bulb holder.
