Removing and installing bulb for additional brake light: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully lever out the right-hand corner segment of the light lens with the screwdriver blade. Pull corner segment out of the lock.
  2. Turn lock of the additional brake light approx. 90° counterclockwise and remove.
  3. Disconnect electrical plug connection and disengage all fastening tabs of the bulb holder.

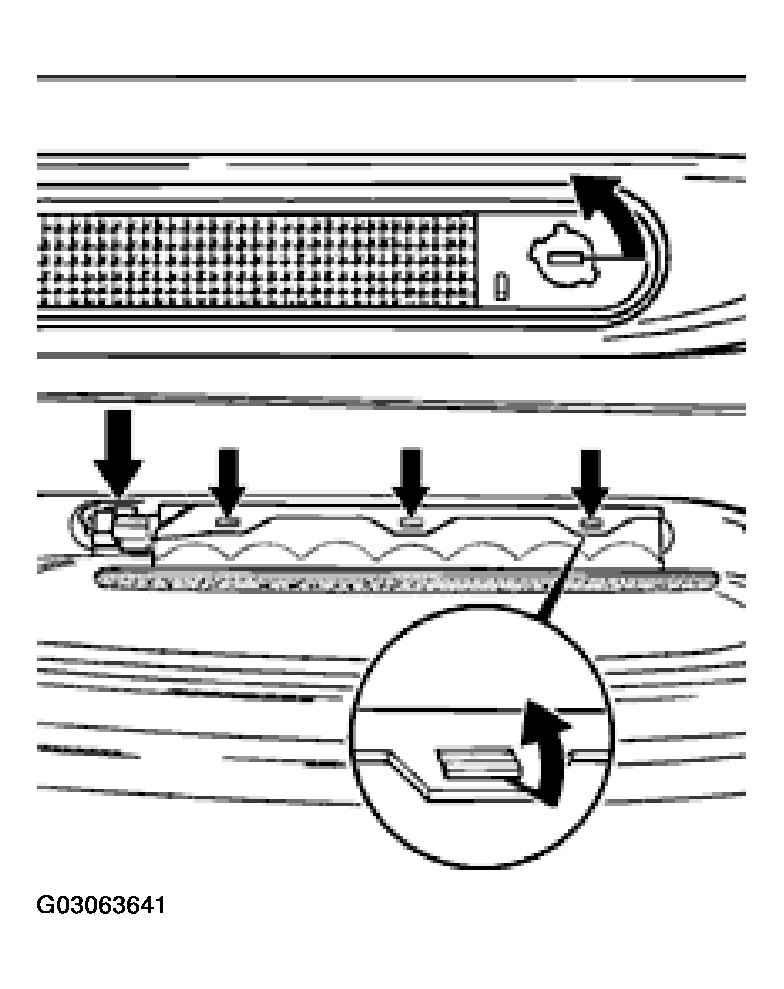

  4. Fig 1: Turning & Removing Lock Of Brake Light & Disengaging Fastening Tabs Of Bulb Holder
    G03063641Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Remove bulb holder and take out defective bulb.
