Masking film for left/right-hand traffic: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Self-adhesive film is available for masking the dipped-beam headlights for left-hand drive vehicles (Germany) in countries where vehicles drive on the left (England) or for right-hand drive vehicles in countries where vehicles drive on the right.

Fig 1 for left-hand drive vehicles in countries with left-hand traffic (2 ea. per vehicle).

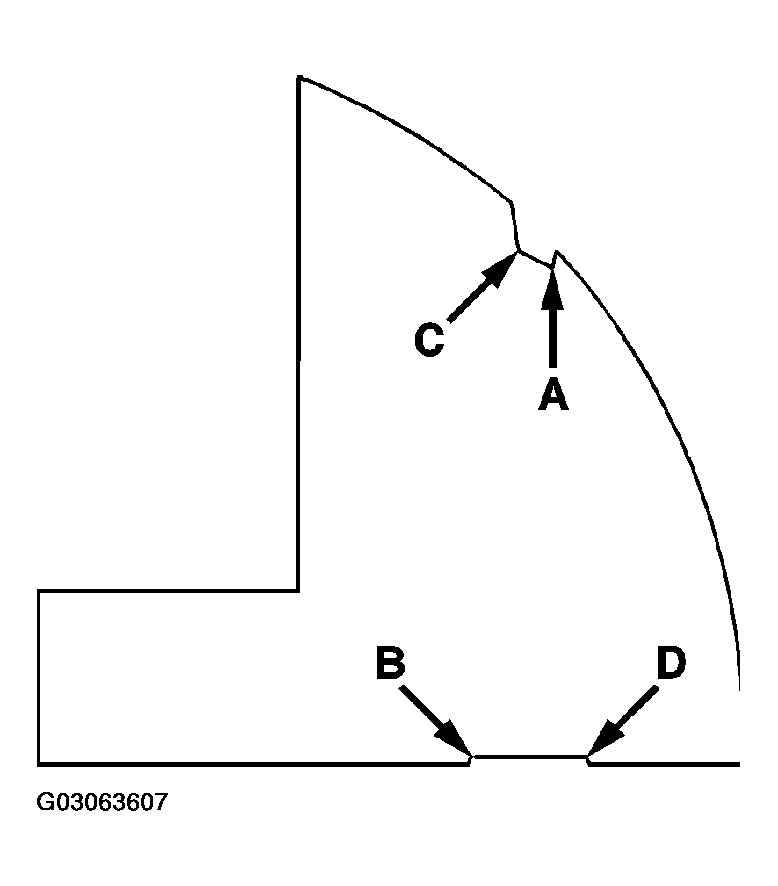

Fig 1: Identifying Masking Film For Left Hand Drive Vehicle

Courtesy of PORSCHE OF NORTH AMERICA, INC.

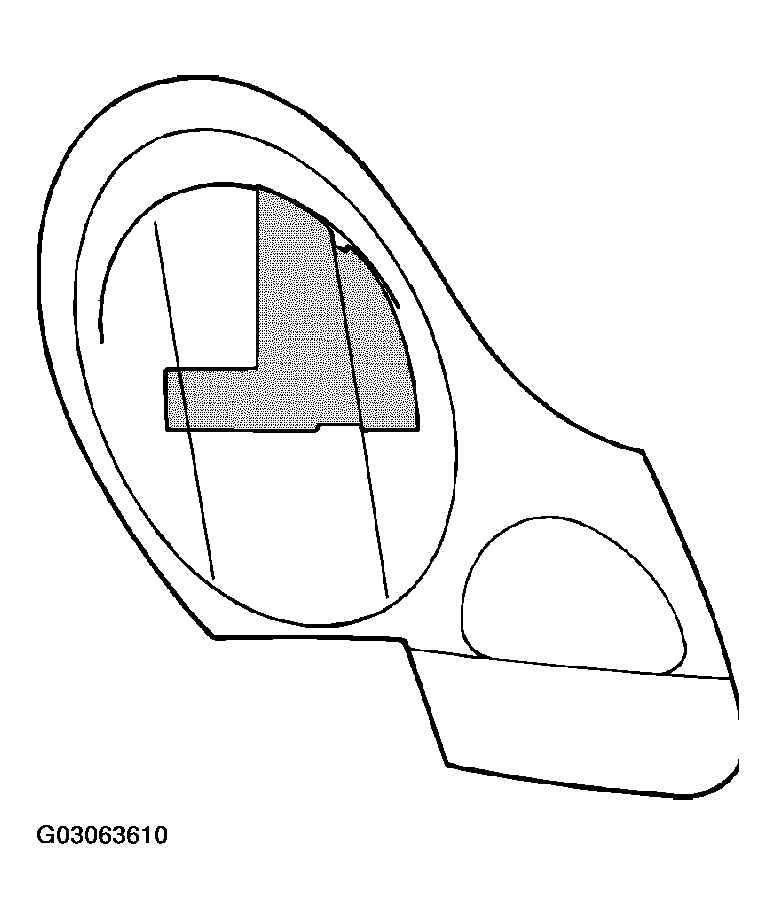

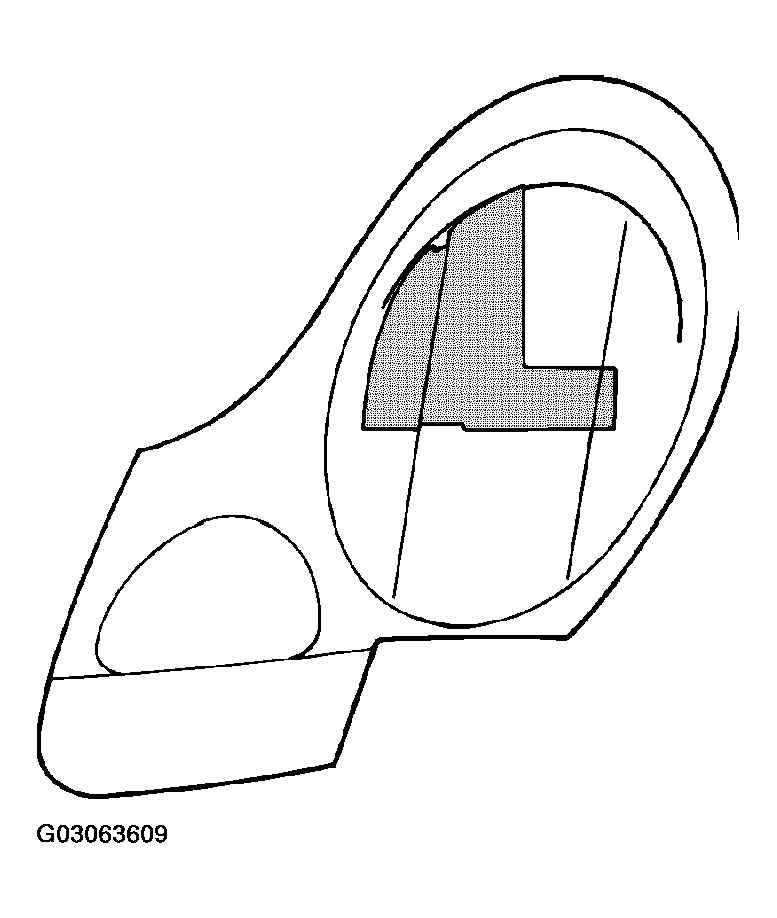

The masking film with the points (notch) A and B in the figure must be affixed in line with the outer line on the right-hand headlight lens (refer to Figure ). Points C and D on the inner line of the left-hand headlight lens (refer to Figure ).

The upper ends of the lines on the headlight lenses are the points (notch) A (right-hand side) and B (left-hand side) on the masking films.

Fig 2 for right-hand drive vehicles in countries with right-hand traffic (2 ea. per vehicle).

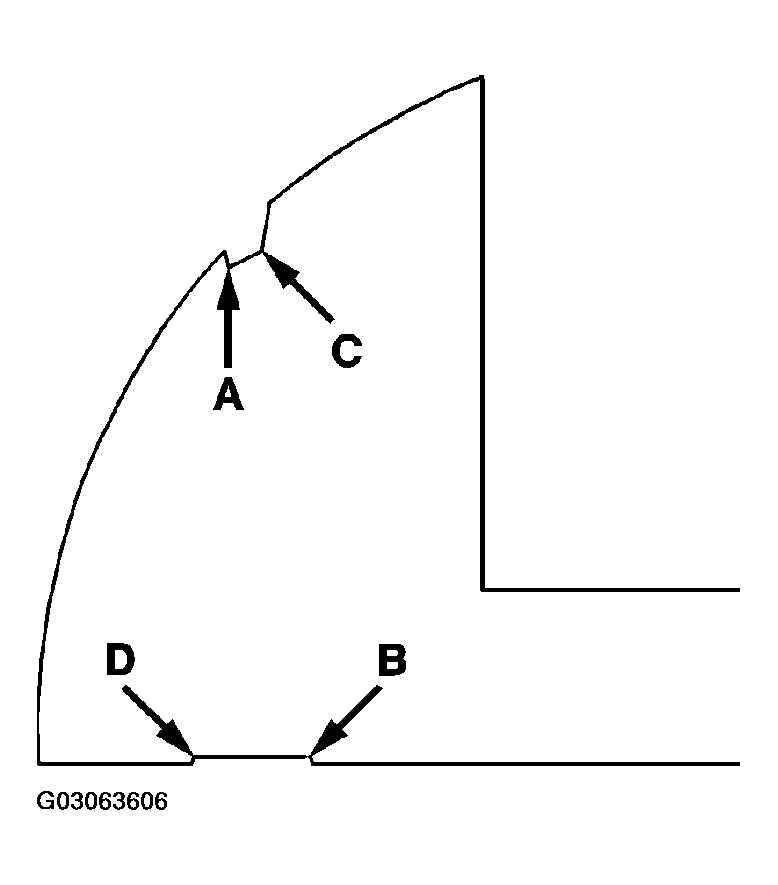

Fig 2: Identifying Masking Film For Right Hand Drive Vehicles

Courtesy of PORSCHE OF NORTH AMERICA, INC.

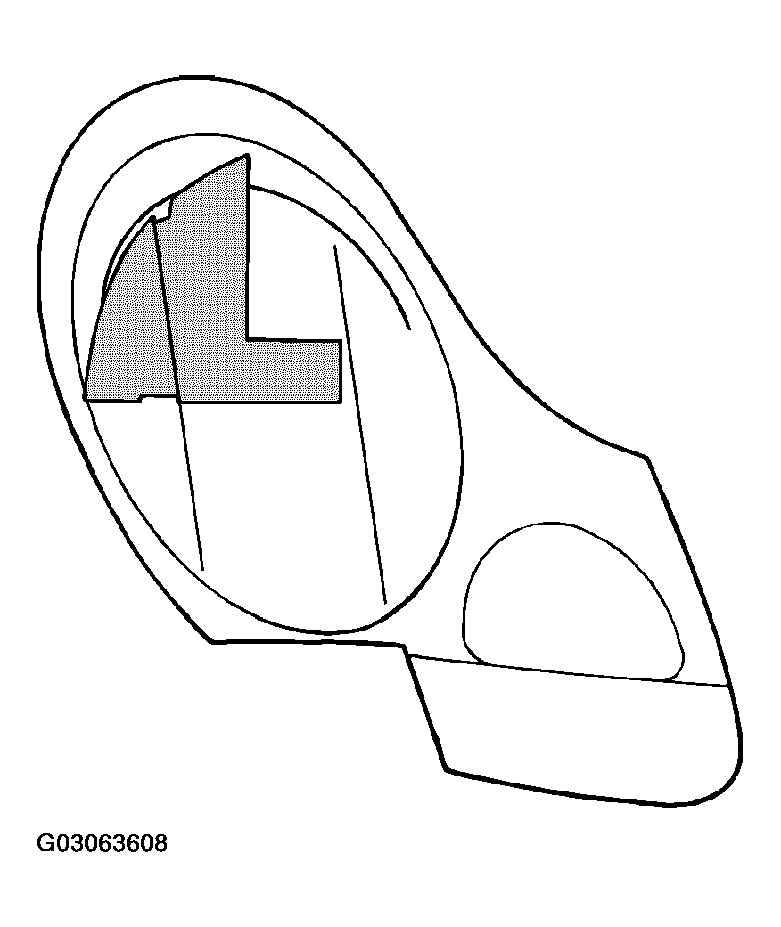

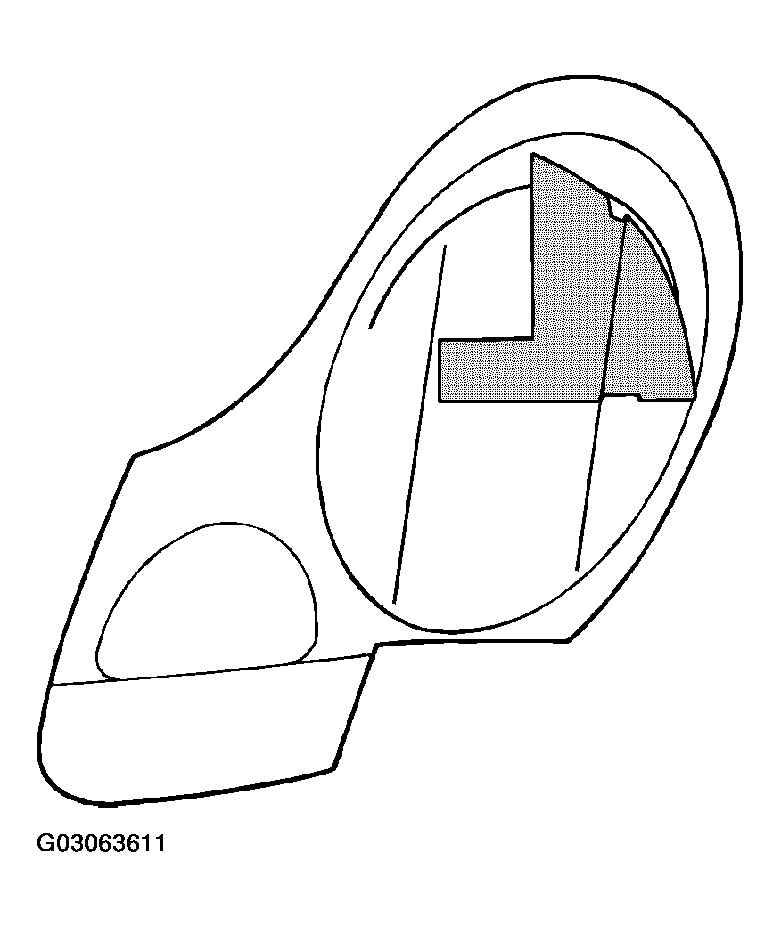

The masking film with the points (notch) A and B in the figure must be affixed in line with the outer line on the left-hand headlight lens (refer to Figure ). Points C and D on the inner line of the right-hand headlight lens (refer to Figure ).

The upper ends of the lines on the headlight lenses are the points (notch) A (left-hand side) and B (right-hand side) on the masking films.
