Changing over Litronic headlights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch off the light. Release the headlight housing and pull out forwards slightly.
  2. Disconnect the electrical plug connection of the automatic headlight beam adjustment and remove the headlight housing.
  3. Release and open the cover with control module.
  4. Push the changeover lever A to position T (tourist setting).

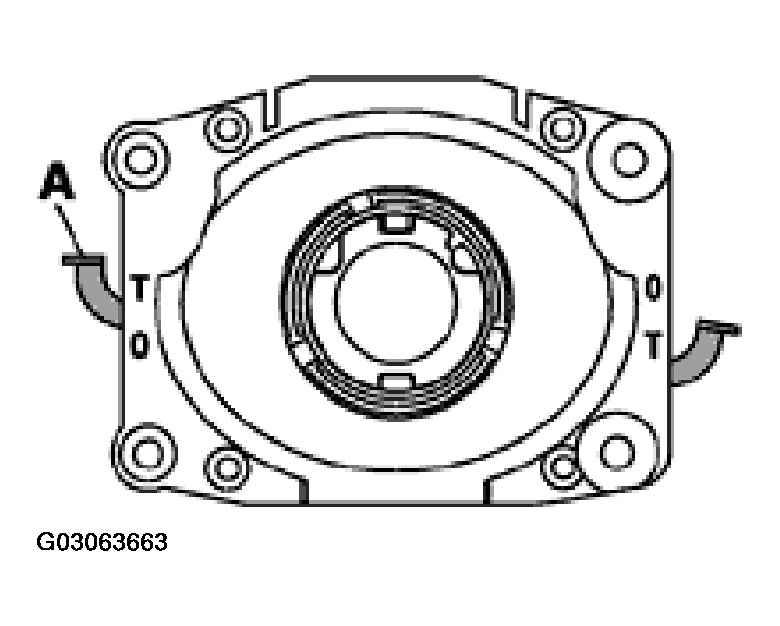

    Fig 1: Pushing Changeover Lever A To T Position
    G03063663Courtesy of PORSCHE OF NORTH AMERICA, INC.

T - Tourist setting"on"

0 - Tourist setting"off"
