Adjustment procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Adjust fastening nuts to the same height as the old version and tighten slightly by hand.

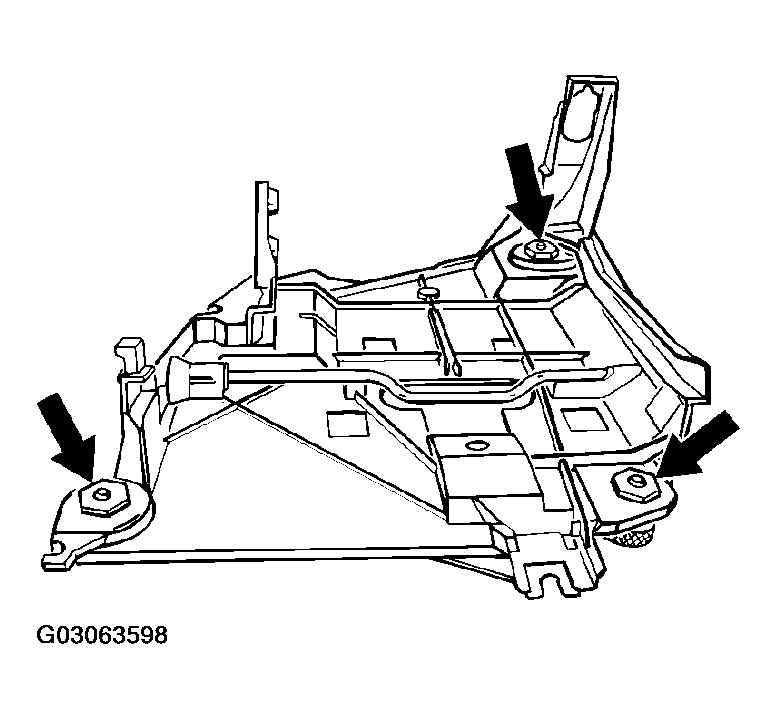

Fig 1 shows mounting plate removed.

Fig 1: Adjusting Headlight Fastening Nuts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press headlight housing firmly into the body and lock.
The correct adjustment is described in items A...C.
After adjustment, tighten the fastening nuts to 8 +/- 2 Nm (6 +/- 1.5 ftlb.). The headlight washer nozzle can be adjusted at the holder.

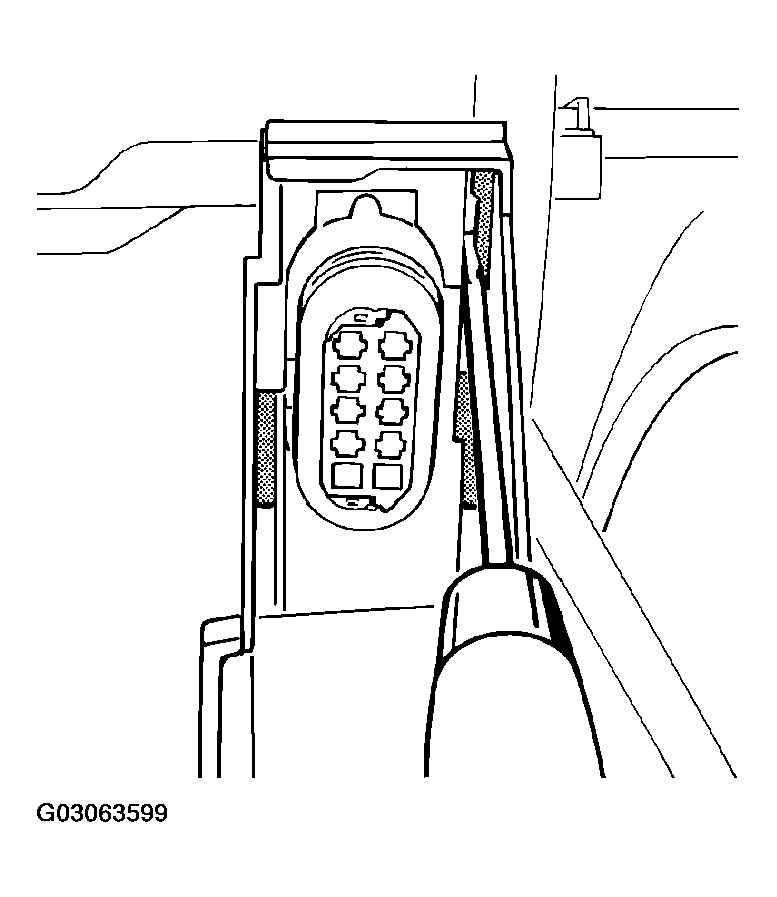

NOTE: The plug housing in the mounting plate is unlocked with a commercially available screwdriver. Apply screwdriver and press down (see Fig 2 ).

Fig 2: Unlocking Mounting Plate Plug Housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Before installing the headlight housing, ensure that the headlamp vent is plugged onto the plug housing.
