Adjustment instructions

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Item A

The transition from the headlight housing to the body is in the same plane (level).

Items B and C

The headlamp housing should lie approximately 2 mm below the body edge.

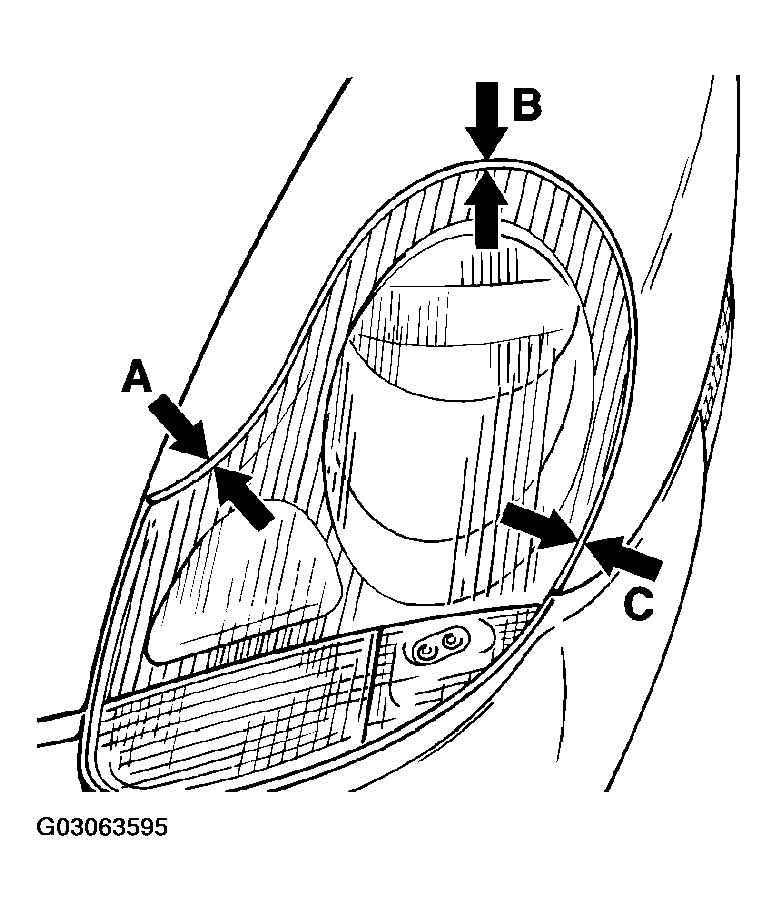

Fig 1: Identifying Thickness Of Headlamp Housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The fastening nuts of the adjusting components are fitted at the factory as shown in Fig 2 .

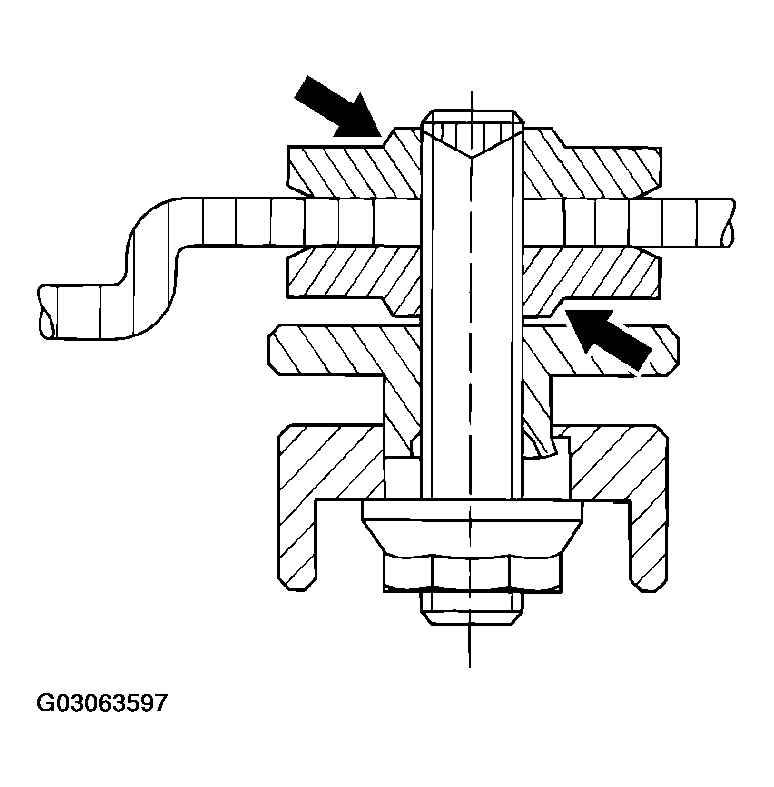

Fig 2: Identifying Factory Fitted Fastening Nut Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

In the event of an accident repair or replacement of the headlights, the fastening nuts should be fitted as in Fig 3 . This ensures greater possibilities for adjusting the mounting plate.

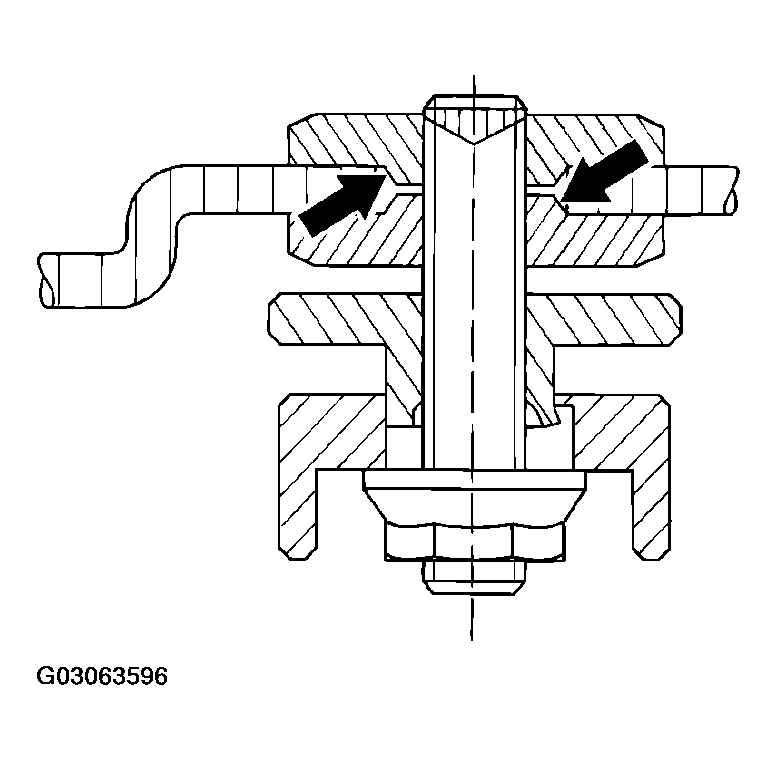

Fig 3: Identifying Fitting Of Fastening Nut

Courtesy of PORSCHE OF NORTH AMERICA, INC.
