Removing Brake Cables

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console insert.

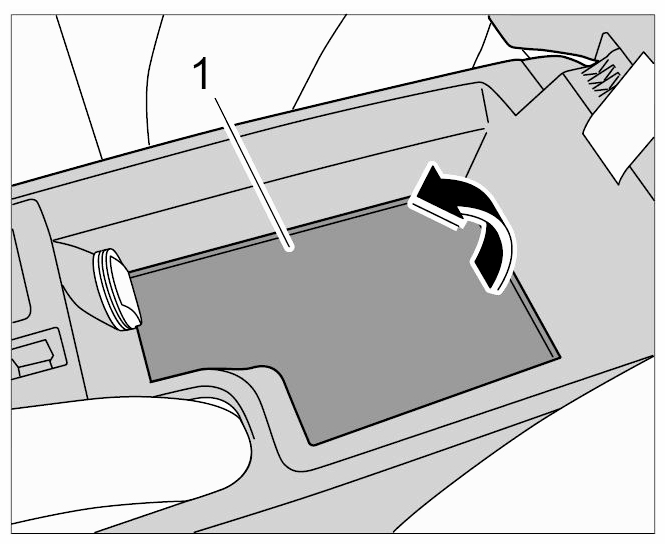

Fig 1: Removing Centre Console Insert
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Open the lid on the oddments tray.
2. 1.2. Remove center console insert at the rear -1- (-arrow- ).
Remove center console floor at the rear.

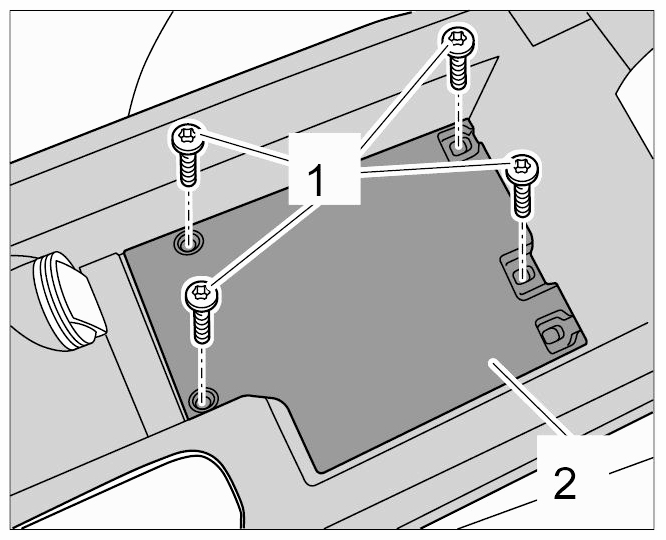

Fig 2: Identifying Centre Console Floor Mounting Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unscrew fastening screws -1- and remove center console floor at the rear -2- .
Disengage brake cables at the handbrake lever.
Turn the lever -3- and disengage brake cables -1- .

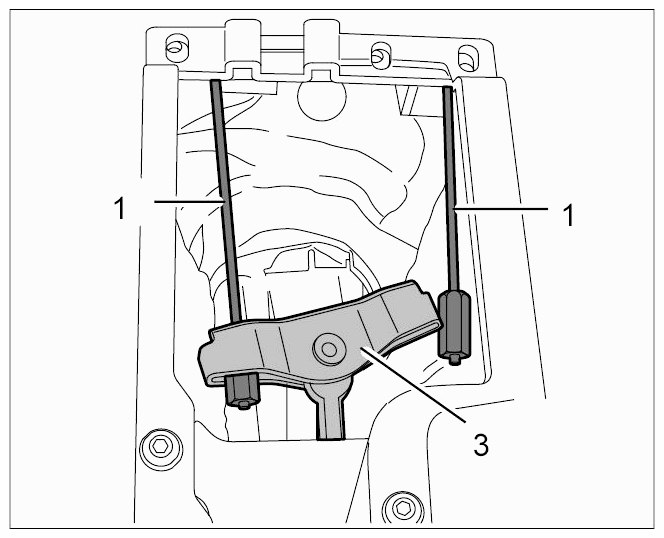

Fig 3: Identifying Brake Cables And Handbrake Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage brake cables at the expanding-lock.
1. 4.1. Pull brake cables -1- out slightly.
2. 4.2. Prise circlip -6- off the bolt -7- and remove it.
3. 4.3. Pull out the bolt -7- and remove expanding-lock -8- .

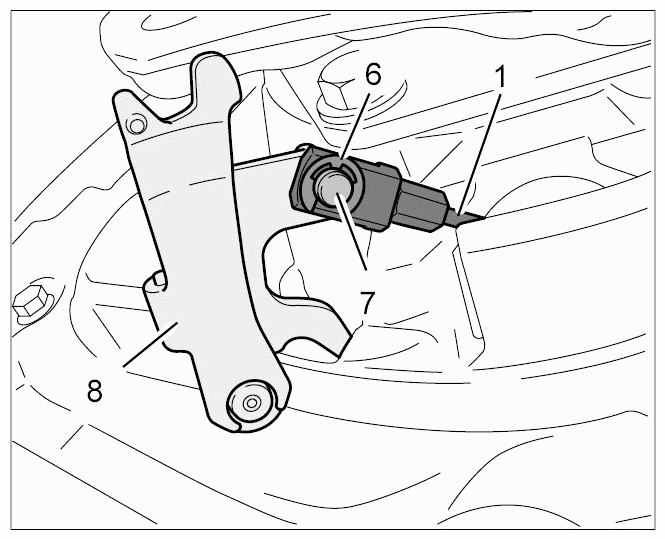

Fig 4: Identifying Brake Cables At Expanding-Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove brake cables.
1. 5.1. Pull brake cables -1- out of the guide tubes -5- at the wheel bearing housing -arrow- .
2. 5.2. Pull brake cables -1- out of the guide tubes at the underbody.
3. 5.3. Clean the guide tubes -5- at the wheel bearing housing.

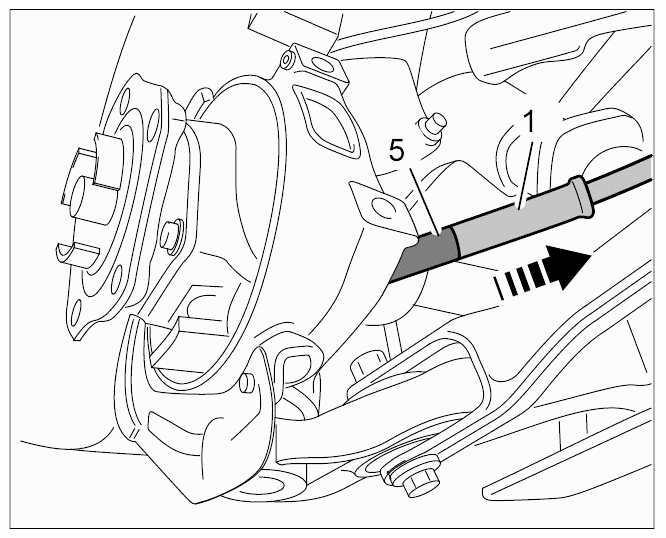

Fig 5: Removing Brake Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
