Checking Brake Discs For Minimum Thickness
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Information

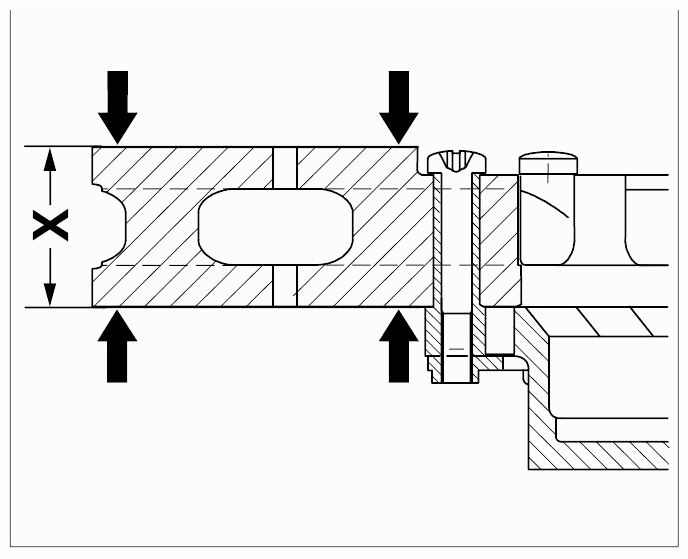

- For perforated brake discs, the minimum thickness -X- must always be measured on the inner or outer friction surface track -arrows- .
- Wear limit: The minimum brake disc thickness is stamped on the brake-disc chamber (e.g. Min. Th. 37.7 mm).
- Measure the brake thickness -X- with a suitable micrometer screw or a brake disc gauge around the inner or outer friction surface tracks -arrows- .
