Checking Brake Discs For Edge Damage
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
Information

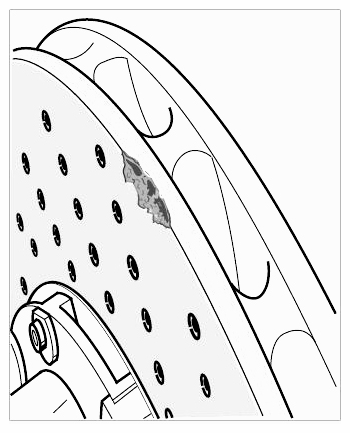

- Irrespective of wear, a brake disc change can be necessary on the brake disc friction surfaces due to edge damage.
- In such cases, only one brake disc may need to be replaced if the friction area surface of the other PCCB brake disc is still completely OK.
The following criteria apply to edge damage assessment:
- Max. permissible width/depth = 2 mm
- Max. permissible length = 10 mm
- Max. 3 damaged edge areas permissible
