Removing Front Brake Pads

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Remove wheel. → Removing Wheel .
Remove the safety bracket and extract the retaining pin inwards.

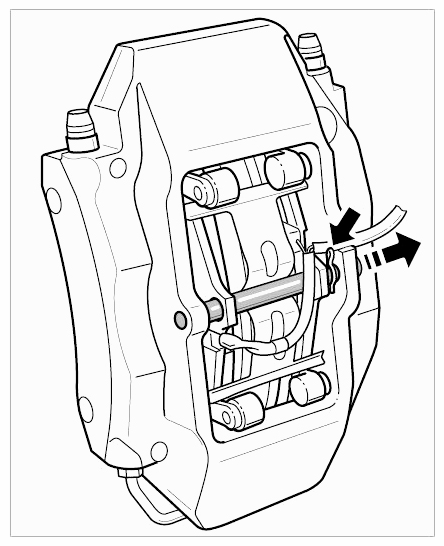

Fig 1: Removing Front Brake Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out the warning contact wire on the brake calliper and remove the warning contacts from the brake pad plates.
Remove brake pads using the brake pad puller. Always observe the following important points:

If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back.

Press the brake pads back as far as possible using the piston reset tool. Piston reset tool Nr.144 .

Pull out brake pads together with the vibration dampers. If this is not possible (depending on the amount of wear on the brake pads), use a spatula to detach the vibration dampers from the brake pad backing plate before removing the pads.
