Removing Rear Brake Pads - PCCB Brakes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

The core of the warning contact wire must not be left exposed! Worn insulation is not important!

If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back!

Remove retainer (securing clip) -arrow- at the top of the retaining pin and move retaining pin -direction arrow- inwards.

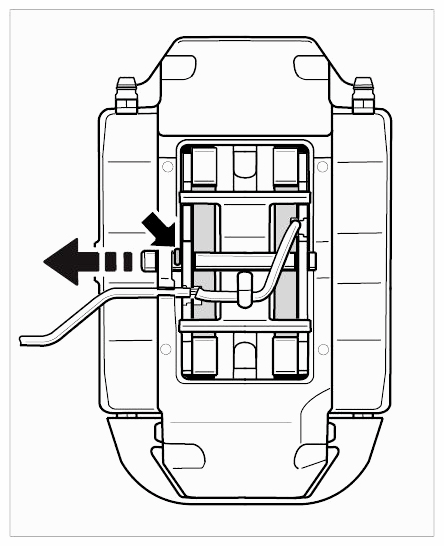

Fig 1: Removing Rear Brake Pads - PCCB Brakes
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove warning contact wire (on the brake callipers, expanding spring and from the disc brake pads).
Remove expanding spring.
Brake piston resetting fixture Nr.144 must be positioned on the brake calliper between the disc brake pads. Then push pads back evenly -direction arrows- .

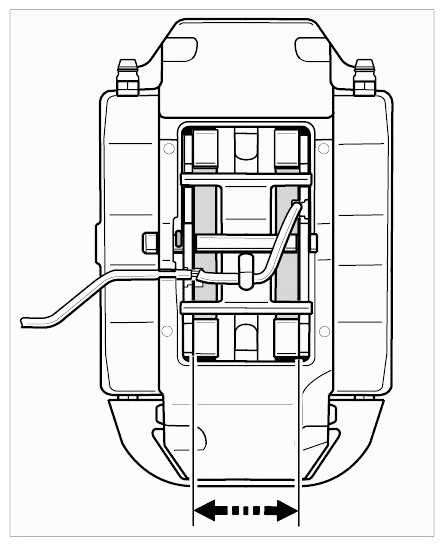

Fig 2: Removing Disc Brake Pads
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove disc brake pads.
