Removing Side Direction Indicator Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver through the opening in the wheel housing liner, press on the spring clamp at the direction indicator light and remove the direction indicator light.

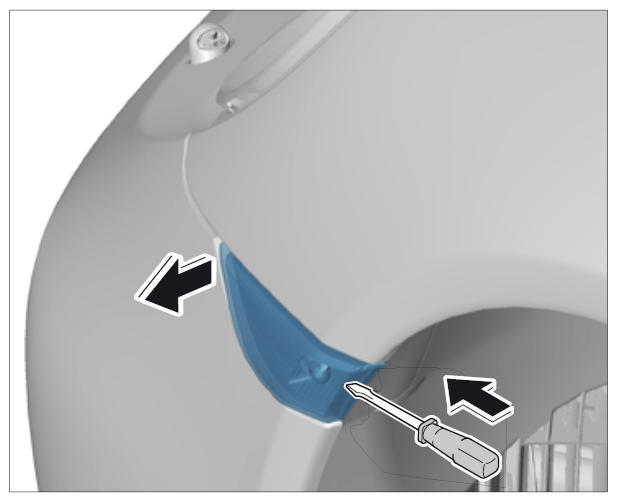

    Fig 1: Removing Direction Indicator Light
    G09999266Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the electric plug connection and disconnect it from the direction indicator light.

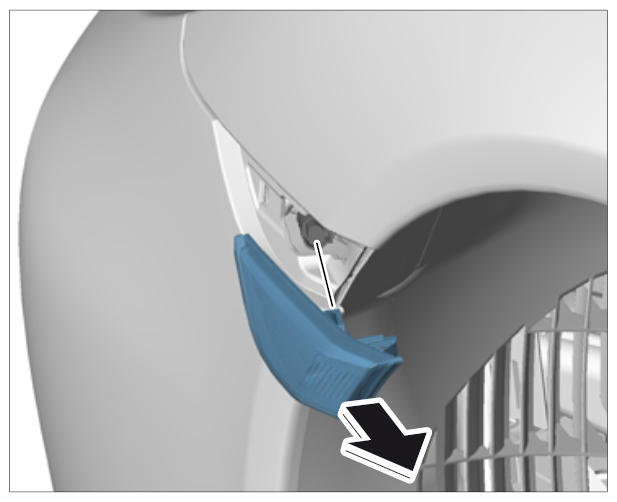

    Fig 2: Disconnecting Electric Plug Connection
    G09999267Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove direction indicator light.

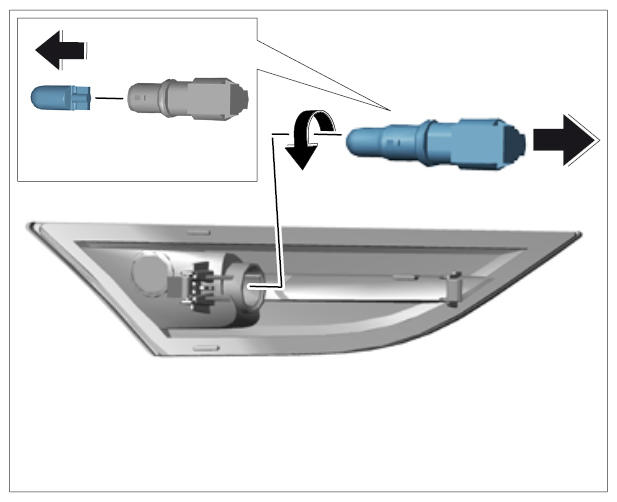

    Fig 3: Removing Bulb
    G09999268Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew the bulb holder.
