Installing Sealing Ring For Drive Shaft

Information

• Before re-installation: Clean the guide sleeve, transmission input shaft and release lever, particularly at the lubrication points.
• We recommend that you use brake cleaner as the cleaning agent.

1. Pre-position the sealing ring.
   1. 1.1. Grease sealing ring between the dust and sealing lips with Liqui-Moly PU53/WDR  .

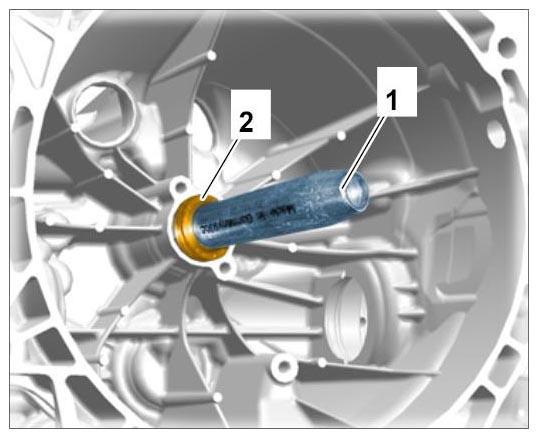

   2. 1.2. Assembly sleeve 9255 -1-  must now be pushed over the splines of the drive shaft.
   3. 1.3. Slide sealing ring -2-  over the assembly sleeve.
   4. 1.4. Remove assembly sleeve.
      Fig 1: Identifying Sealing Ring And Sleeve Assembly

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

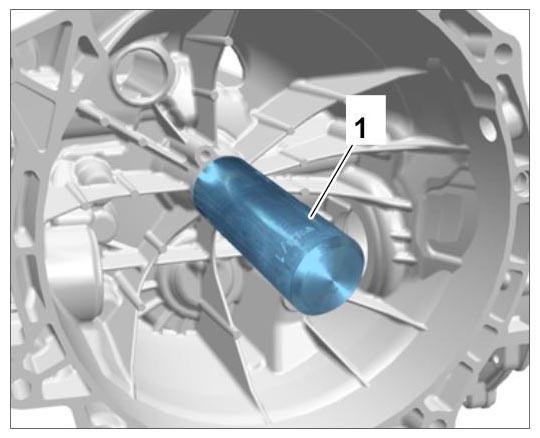

2. Tap sealing ring in as far as it will go using pressure piece 9628 -1-  .
   Fig 2: Fitting Sealing Ring Using Pressure Piece

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit guide sleeve.
   1. 3.1. Position the guide sleeve.

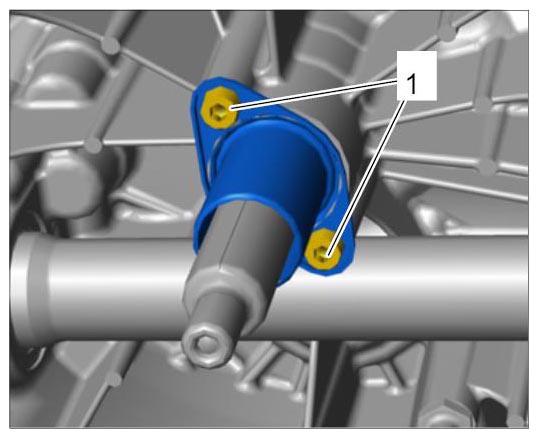

   2. 3.2. Tighten fastening screws -1-  .

      Tightening torque 24 Nm (18 ftlb.)

      Fig 3: Identifying Screws For Guide Sleeve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

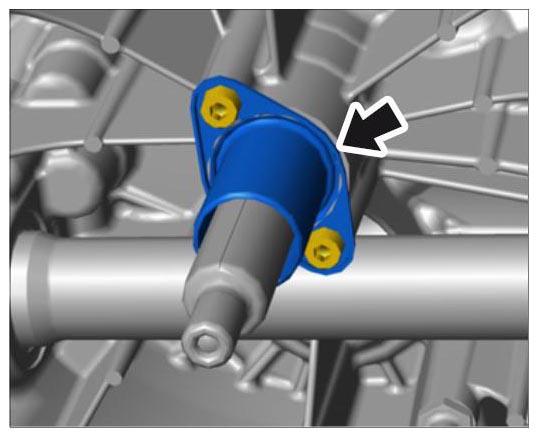

   3. 3.3. Lubricate the guide sleeve with a light coating of Kluberalfa HM83-801. Lubrication point: -arrow-  .
      Fig 4: Locating Lubrication Point Of Guide Sleeve

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Grease the splines of the transmission input shaft with Longtime 3EP.

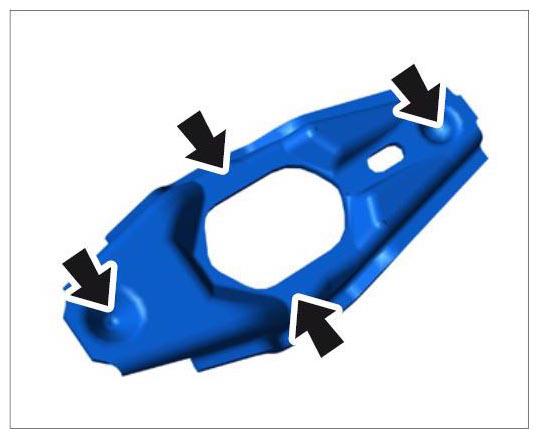

5. Lubricate release lever lightly with Kluberalfa HM83-801 at the contact points. Lubrication points: -arrows-  .
   Fig 5: Locating Lubrication Points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Fit release lever and release bearing.

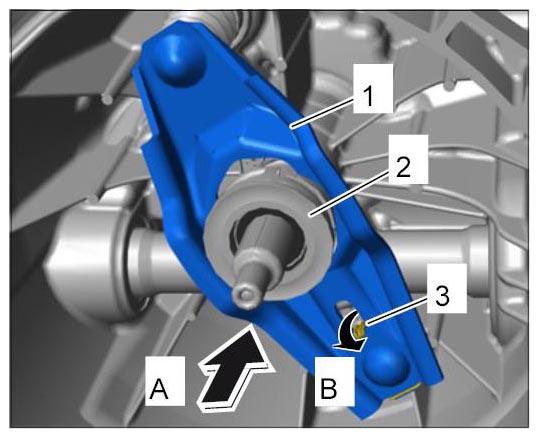

   1. 6.1. -A-  : Position release lever -1-  together with the release bearing -2-  .
   2. 6.2. -B-  : Engage wire spring -3-  in the opening on the release lever from behind.
   Fig 6: Fitting Lever And Bearing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
