Vehicle Height

Information

• The following values relate to the empty weight, i.e. full fuel tank/fluid reservoirs, vehicle with tools, but without driver or additional weights!

Information

GTS variants are set to PASM - 10 mm as standard.

Vehicle height for all C4/C4S and Turbo/Turbo S worldwide	Standard	PASM ± 0 mm	PASM - 10 mm	PASM Sport - 20 mm	Turbo/Turbo S
Front-axle height (control values)
19-inch wheels	133 mm +/- 10 mm	133 mm +/- 10 mm	123 mm +/- 10 mm	113 mm +/- 10 mm
20-inch wheels	139 mm +/- 10 mm	139 mm +/- 10 mm	129 mm +/- 10 mm	119 mm +/- 10 mm	130 mm +/- 10 mm

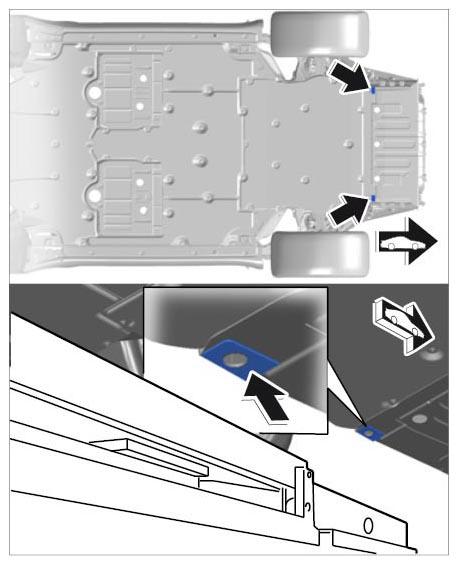

From road contact surface to measuring point on cross member/bulkhead -arrows-  Measuring point for front-axle height
Quick check: Distance from wing (lower edge) to center of wheel	390 +/- 10 mm	390 mm +/- 10 mm	379 mm +/- 10 mm	368 +/- 10 mm

Vehicle height for all C4/C4S and Turbo/Turbo S worldwide	Standard	PASM ± 0 mm	PASM - 10 mm	PASM Sport - 20 mm	Turbo/Turbo S
Rear-axle height (control values)
19-inch wheels	151 mm +/- 10 mm	151 mm +/- 10 mm	141 mm +/- 10 mm	131 mm +/- 10 mm
20-inch wheels	151 mm +/- 10 mm	151 mm +/- 10 mm	141 mm +/- 10 mm	131 mm +/- 10 mm	142 mm +/- 10 mm

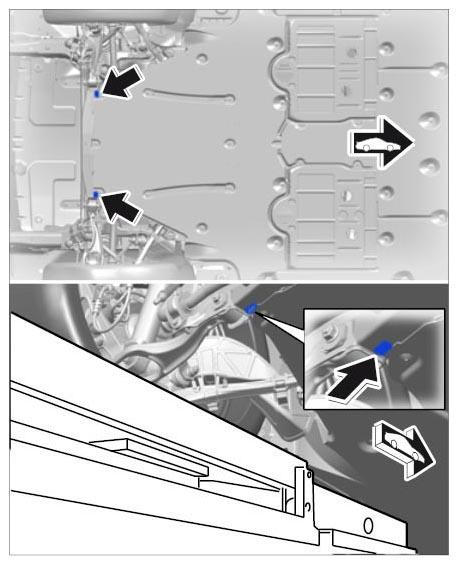

From road contact surface to outer rear-axle cross member (outer area close to underbody panelling) -arrows-  Measuring point for rear-axle height
Quick check: Distance from wing (lower edge) to center of wheel	393 +/- 10 mm	393 +/- 10 mm	383 +/- 10 mm	373 +/- 10 mm
Permitted transverse inclination of the vehicle: Max. difference in height, left to right = 5 mm
Max. wheel-load difference, right to left, on front and rear axle = 20 kg
