Preliminary Work At Front Left

  1. Remove wheel. → 440519 REMOVING AND INSTALLING WHEEL
  2. Remove rear section of front wheel housing liner. → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - section on "Removing"
  3. Disconnect water line for headlight cleaning system from the headlight cleaning system pump -A-  and unclip the water line -arrows-  .

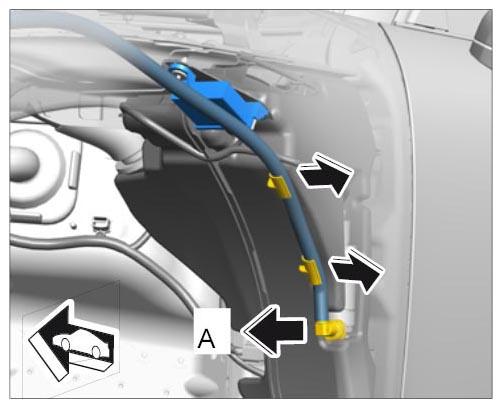

    Fig 1: Disconnecting Headlight Cleaning System Water Line
    G09993219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
