Removing Control Unit For Tyre Pressure Monitoring (TPM)

→ Remove the ignition key and switch off load before disconnecting or removing load.

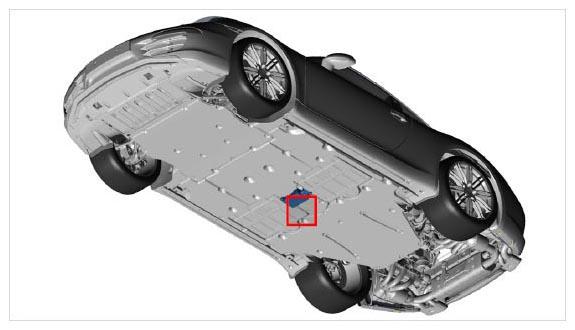

Fig 1: Identifying TPM Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Release -a-  and disconnect -A-  plug connection.

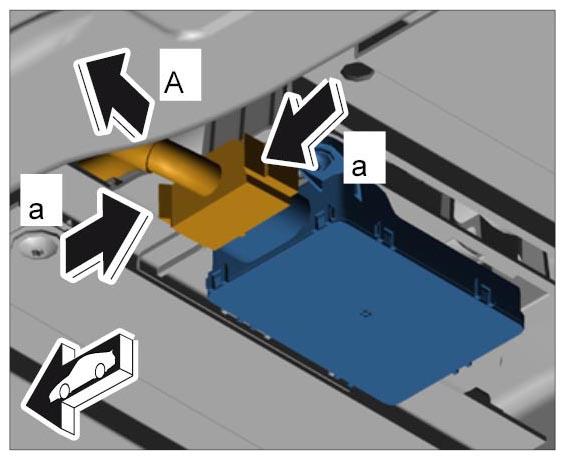

   Fig 2: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove control unit for Tyre Pressure Monitoring.

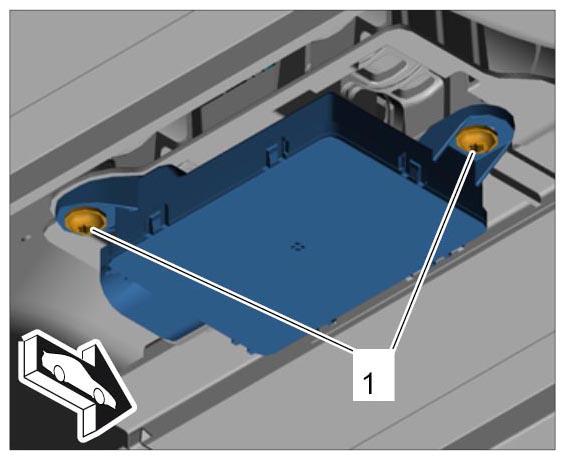

   Fig 3: Identifying TPM Control Unit Mounting

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Unscrew fastening screws -1-  .
   2. 2.2. Remove control unit for Tyre Pressure Monitoring.
