Information Regarding Tool - Central Bolts (Loosening And Tightening The Wheel Bolt)

Only use the permitted socket wrench 9796 -1-  on the 911 with centre-lock wheel!

Never use  the 9451 socket wrench -2-  from the Carrera GT.

Reason:  The lockable wheel bolt (locking mechanism) will break off because there is no plunger for releasing the lockable wheel bolt. This means that the wheel will not be secured. This state of affairs can no longer be recognized once the hub cap is fitted!

To prevent any risk of confusion, ensure that a suitable sticker is attached to the special tool from the Carrera GT - socket wrench 9451!

Order number for this sticker = 000.721.945.11

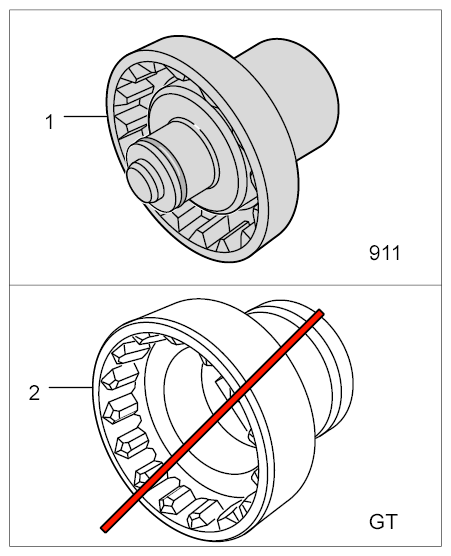

Fig 1: Identifying Socket Wrench For Central Bolt
G09993168Courtesy of PORSCHE CARS NORTH AMERICA, INC.
