Engine Mount And Engine Carrier

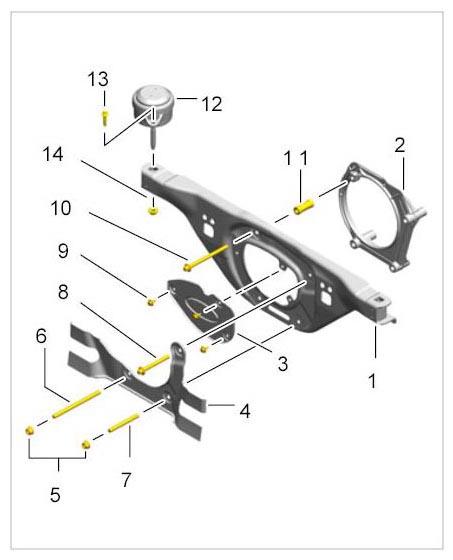

Fig 1: Overview Of Engine Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
No. 13/Engine mount to body	Hexagon-head bolt, M8 x 35 or M8 x 65 for active engine mounts (PADM)	Tightening torque	23 Nm (17 ftlb.)
No. 14/Engine carrier to engine mount	Collar nut, M12	Tightening torque	85 Nm (63 ftlb.)
