Removing Front Left Tyre Pressure Monitoring (TPM) Antenna

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Release electric plug connection for TPM antenna -A-  and disconnect it -arrow-  .

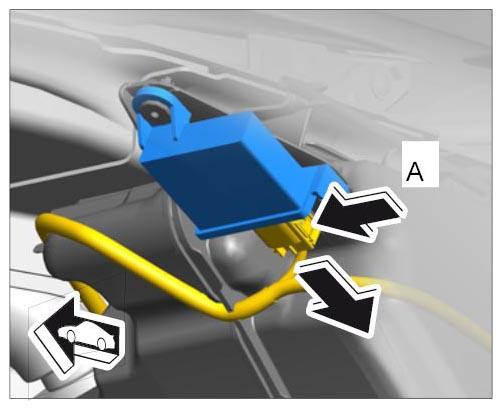

   Fig 1: Disconnecting TPM Antenna Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Open the rivets -1-  and remove TPM antenna.

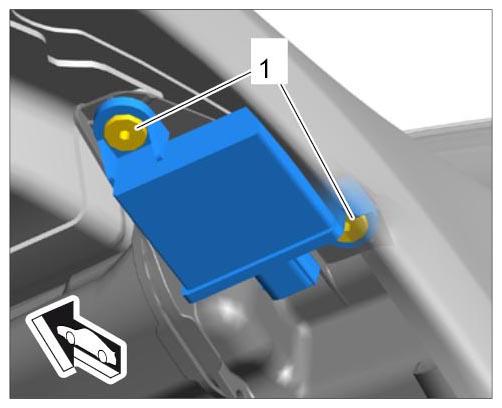

   Fig 2: Removing Front Left TPM Antenna

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
