Transmission Mount And Transmission Bracket

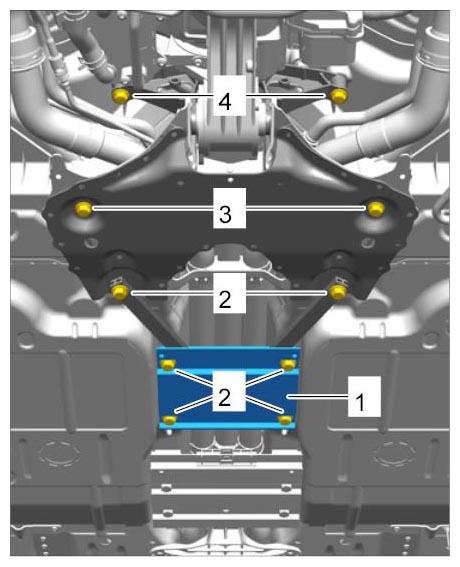

Fig 1: Identifying Brace Plate And Transmission Bracket

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value
No. 2/Brace plate (No. 1) to body	Hexagon-head bolt, M10 x 40	Initial tightening	30 Nm (22 ftlb.)
No. 2/Brace plate (No. 1) to body	Hexagon-head bolt, M10 x 40	Final tightening	+90°
No. 3/Transmission bracket to body	Hexagon-head bolt, M10 x 50	Tightening torque	65 Nm (48 ftlb.)
No. 4/Transmission support to body	Collar nut, M10	Tightening torque	65 Nm (48 ftlb.)
Transmission support and transmission bracket to transmission mount	Screw, M12 x 140 with M12 collar nut	Tightening torque	120 Nm (89 ftlb.)
No. 3/Middle of brace plate (No. 1) to body	Hexagon-head bolt, M10 x 70	Initial tightening	30 Nm (22 ftlb.)
No. 3/Middle of brace plate (No. 1) to body	Hexagon-head bolt, M10 x 70	Final tightening	+90°

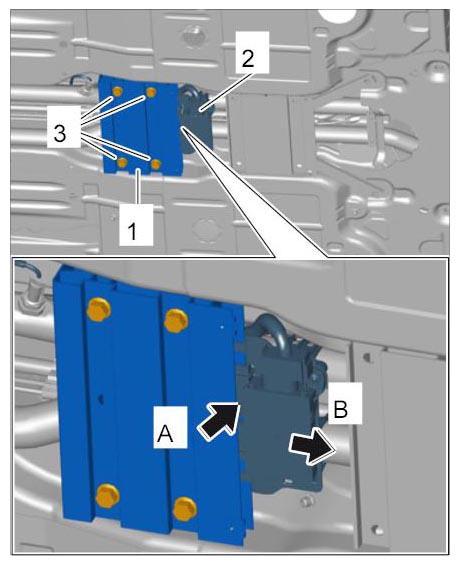

Middle of brace plate to body
