Remove Spring Strut Locking Devices - GT3

Information

• The wheels need not be removed!

1. Lift the vehicle (wheels on the front axle must be free). → 4X00IN LIFTING THE VEHICLE
2. Pull the lock blocks -arrows-  from the coil springs one after the other.

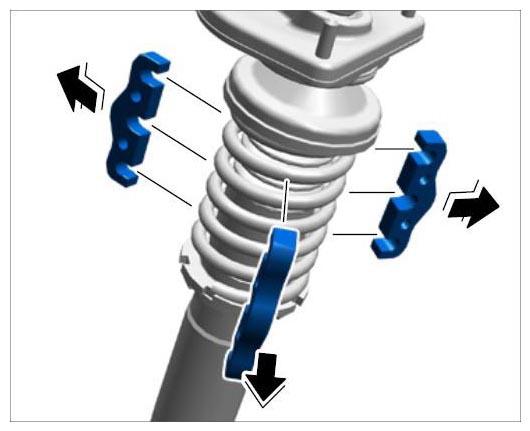

   Fig 1: Removing Spring Strut Locking Devices

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lower the vehicle.
