Subsequent Work At Front Left

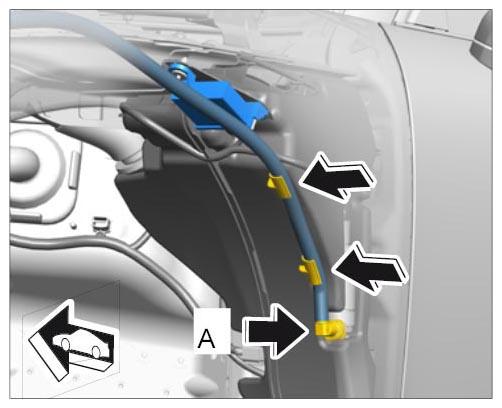

  1. Connect water line to the headlight cleaning system pump -A-  and clip in water line for headlight cleaning system -arrows-  .
    Fig 1: Connecting Water Hose
    G09993231Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install rear section of front wheel housing liner. → Installing front wheel housing liner
  3. Fit wheel. → Installing Wheel
