Installing Knee Airbag On Driver's Side

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

1. Position knee airbag so that the plug connections can be contacted.
2. Plug in plug connections for knee airbag.
   1. 2.1. Plug in plug connection -4-  on the knee airbag -2-  and push in -3-  the locking mechanism -arrow A-  .
   2. 2.2. Insert -1-  ground connection -2-  on knee airbag -arrow B-  .

      Information

      Always replace the fastening screws on the airbag unit after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.

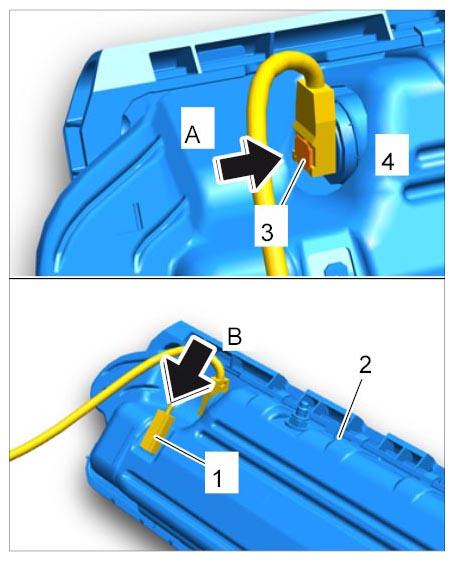

      Fig 1: Installing Plug Connections For Knee Airbag

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Align knee airbag -2-  (-arrows-  ) and secure with the fastening screws -1-  ().

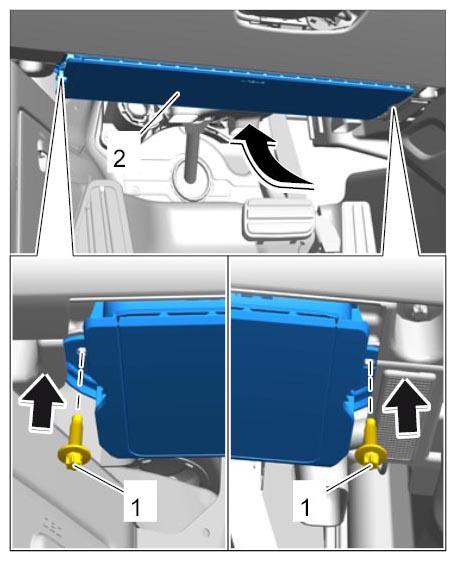

   Fig 2: Installing Knee Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
