Installing Roll-Over Bar

Installation is performed in reverse order to removal.
Install roll-over bar.
1. 2.1. Tack-weld all threaded connections and align roll-over bar.
2. 2.2. Tighten fastening screws and nuts to the prescribed tightening torque (→ Overview of roll-over bar ).

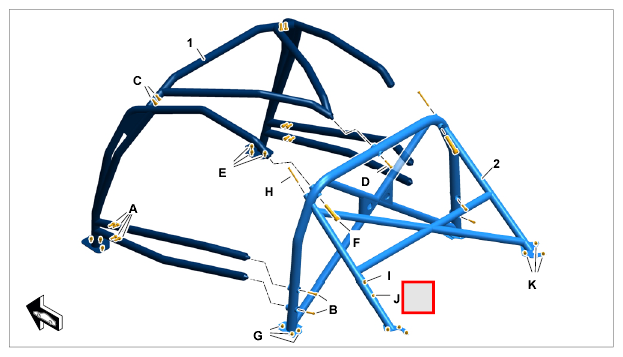

  Fig 1: Overview Of Roll-Over Bar
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. → Tightening torque: 120 Nm (89 ftlb.)

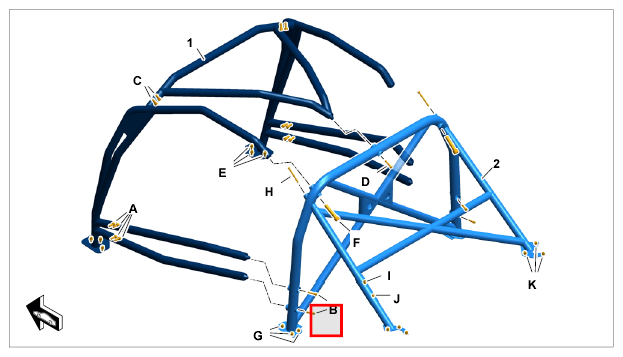

    Fig 2: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. → Tightening torque: 25 Nm (19 ftlb.)

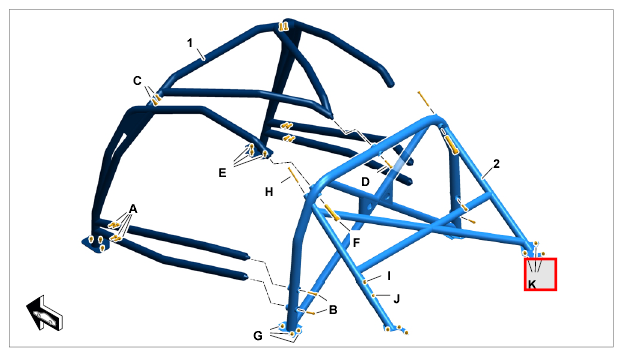

    Fig 3: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. → Tightening torque: 120 Nm (89 ftlb.)

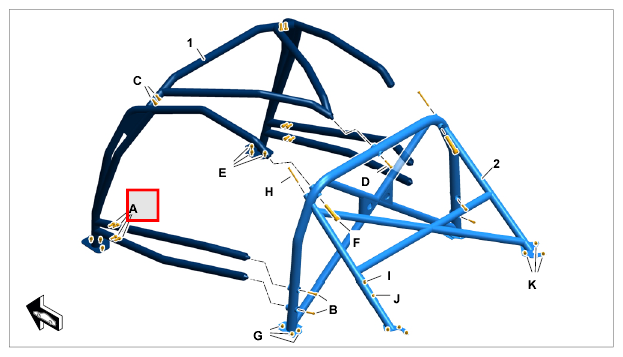

    Fig 4: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. → Tightening torque: 25 Nm (19 ftlb.)

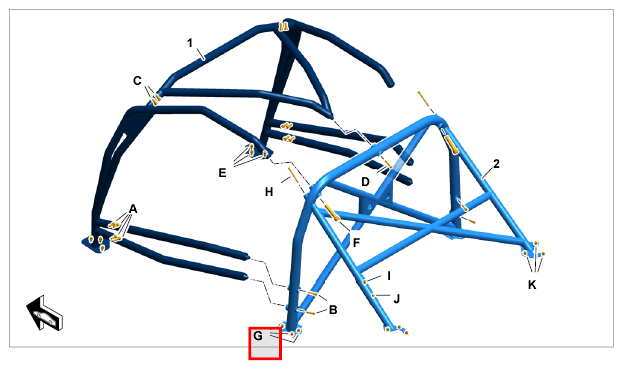

    Fig 5: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. → Tightening torque: 25 Nm (19 ftlb.)

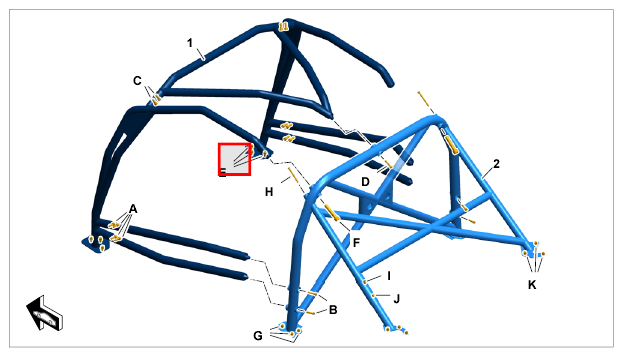

    Fig 6: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. → Tightening torque: 220 Nm (163 ftlb.)

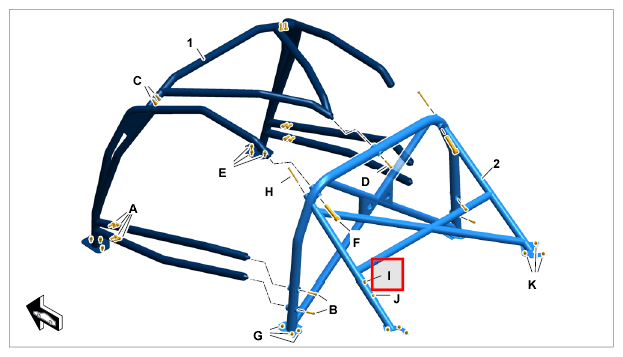

    Fig 7: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. → Tightening torque: 25 Nm (19 ftlb.)

    Fig 8: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. → Tightening torque: 25 Nm (19 ftlb.)

    Fig 9: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. → Tightening torque: 33 Nm (24 ftlb.)

    Fig 10: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. → Tightening torque: 33 Nm (24 ftlb.)

    Fig 11: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. → Tightening torque: 25 Nm (19 ftlb.)

    Fig 12: Overview Of Roll-Over Bar
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
