Removing Occupant Detection Control Unit

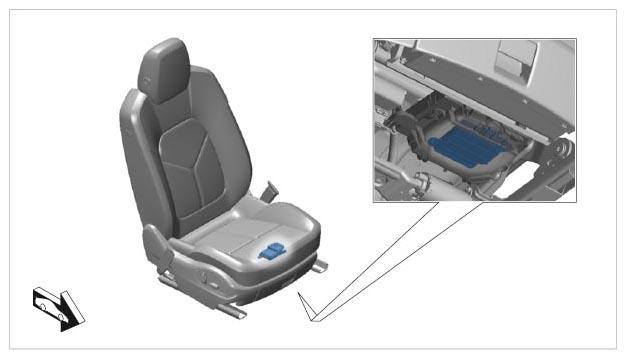

Fig 1: Identifying Occupant Detection Control Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew the two fastening screws -2-  and the occupant detection control unit -1-  and remove from the side.
2. Release and unplug the electrical plug connection -2-  on the occupant detection control unit -1-  .

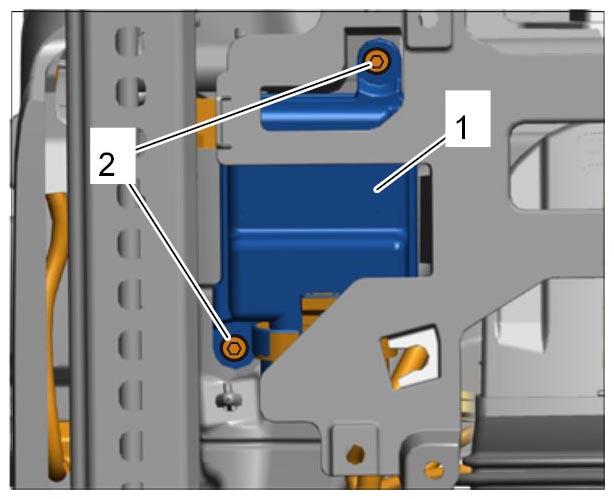

   Fig 2: Identifying Occupant Detection Control Unit With Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove the occupant detection control unit -1-  .

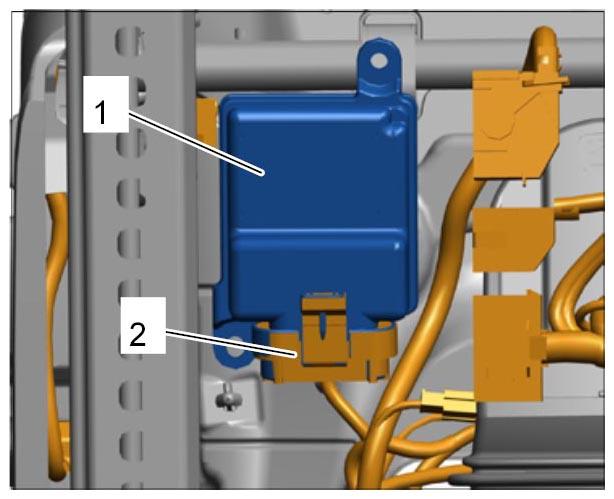

Fig 3: Identifying Electrical Plug Connection On Occupant Detection Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
