69 Occupant Protection/Personal Protection -- 911 CARRERA (991)
>>
WM 692619 Removing And Installing Belt Strap Guide (Folding Sports Bucket Seat) (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Installing Belt Strap Guide
>>
Installing Lower Belt Strap Guide
Installing Lower Belt Strap Guide
Position lower belt strap guide
-2-
on the seat shell
-3-
and secure with the fastening screws
-1-
.
→ Tightening torque: 3 Nm (2 ftlb.)+/-0.3 Nm (+/-0.2 ftlb.)

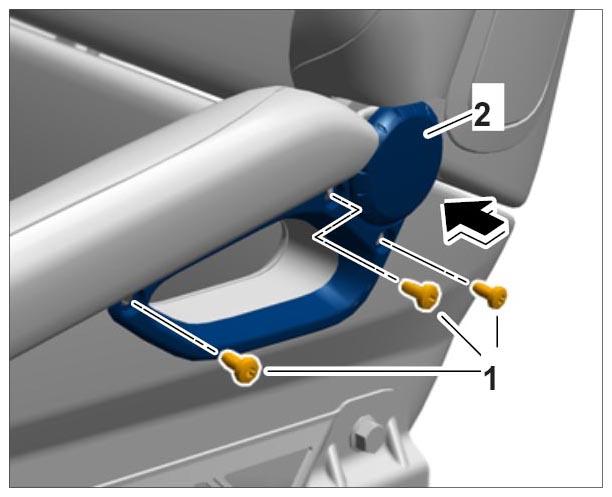

Fig 1: Installing Lower Belt Strap Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
