Installing Air Vent For Door Window
- Connect plug connection -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

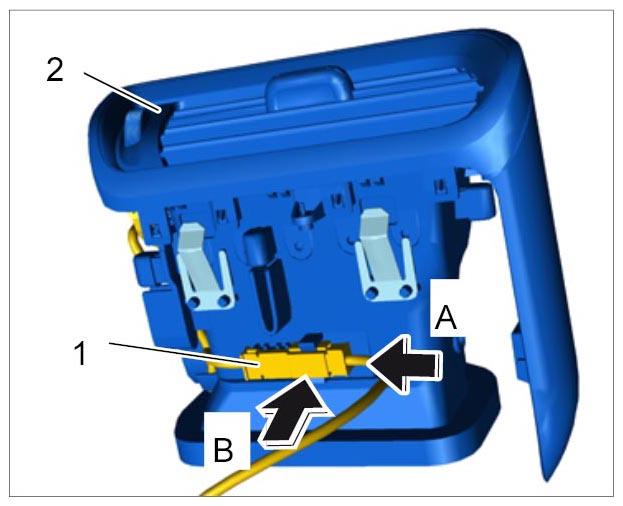

- 1.1. Connect plug connection -1-
(-A-
).
- 1.2. Check that the plug connection is seated securely.
- 1.3. Clip plug connection -1-
onto the air vent -2-
(-B-
).
- Install air vent.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

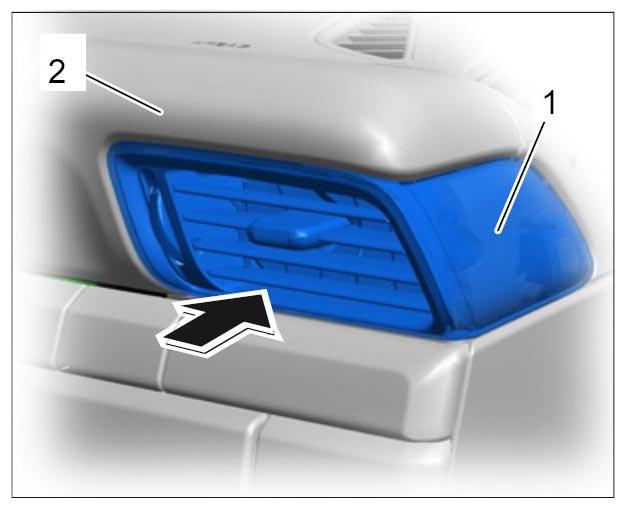

- 2.1. Fit the air vent -1-
and press it in -arrow-
until it engages securely in the dashboard -2-
.
- Perform a function test on the air vent.
- 3.1. Move the vanes in all directions at the handle.
- 3.2. Check that all the vanes move as required.
