General Test Prerequisites

• Close doors, windows and sliding roof
• Insert temperature probe into Centre vent
• Measure ambient temperature
• Open all dashboard vents
• Switch on ignition
• Press recirculating-air button
• Set temperature control to maximum cooling
• Switch fresh-air blower to "max"
• Start engine
• Operate air conditioning while idling
• Set engine speed to 2000 RPM (start of time measurement)

If the prescribed nominal values are not reached, the air conditioning must be checked for leaks and repaired.

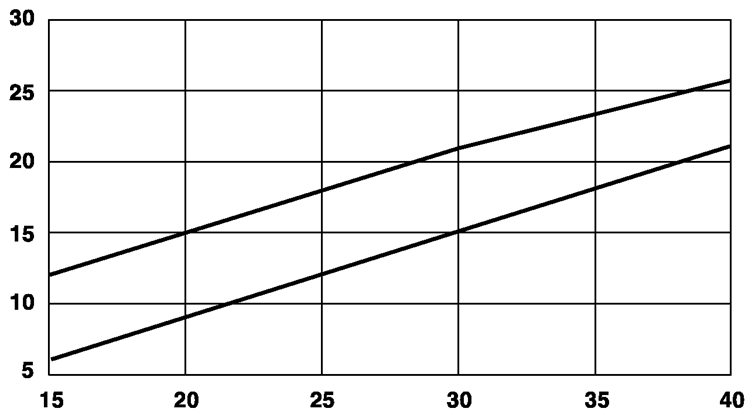

Fig 1: Center Vent Temperature Versus Ambient Temperature Graph

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

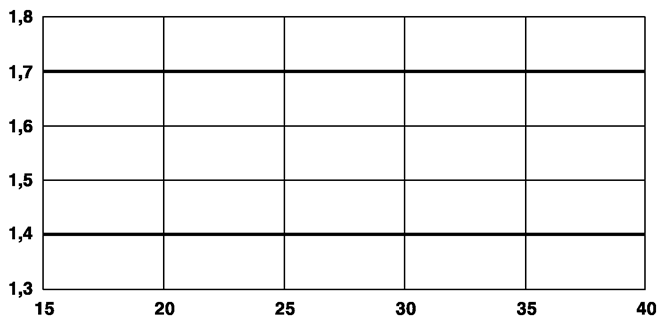

Fig 2: Refrigerant Circuit (High Pressure) Versus Ambient Temperature

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Refrigerant Circuit (Low Pressure) Versus Ambient Temperature

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
