Removing Clutch

Information

• To avoid deforming the clutch pressure plate, always loosen fastening screws in several steps and in diagonally opposite sequence.
• This procedure is not required when replacing the clutch.

Information

• When loosening the clutch pressure plate, ensure that the lock on the adjustment device detaches from the housing.
• The lock must dip loosely into the housing as far as it will go. Press the lock towards the flywheel, if necessary.

1. Loosen the pressure plate according to specifications.
   1. 1.1. Be careful with the adjustment device -arrow-.

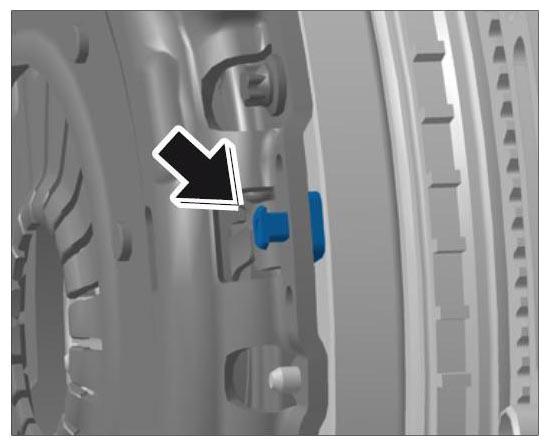

      Fig 1: Loosening Pressure Plate

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove pressure plate and drive plate.
